Product Description
PCQ450 extracting & separating machine


Brief Introduction:

     PCQ series of centrifugal separator is specially applied for the plants extracting, and there are advantages of beautiful
appearance, closed structure, explosive-proof and excellent performance.With the flat-bottom basket, the working volume is big, the cleanness is high, there is no contamination, and it is easy to operate.


Working principle:

After crushed plants are putt into the filtering bag, they are put into the machine together. Fill alcohol, until raw materials
are immersed. Have the double-direction rotating, so those effective compositions in plants can be extracted fully.
After the extracting, open the bottom valve, and the liquid flows out of the machine. Have the high-speed rotating for remained solids, so the solid can be as dry as possible. Then, have the further treatment for the alcohol.

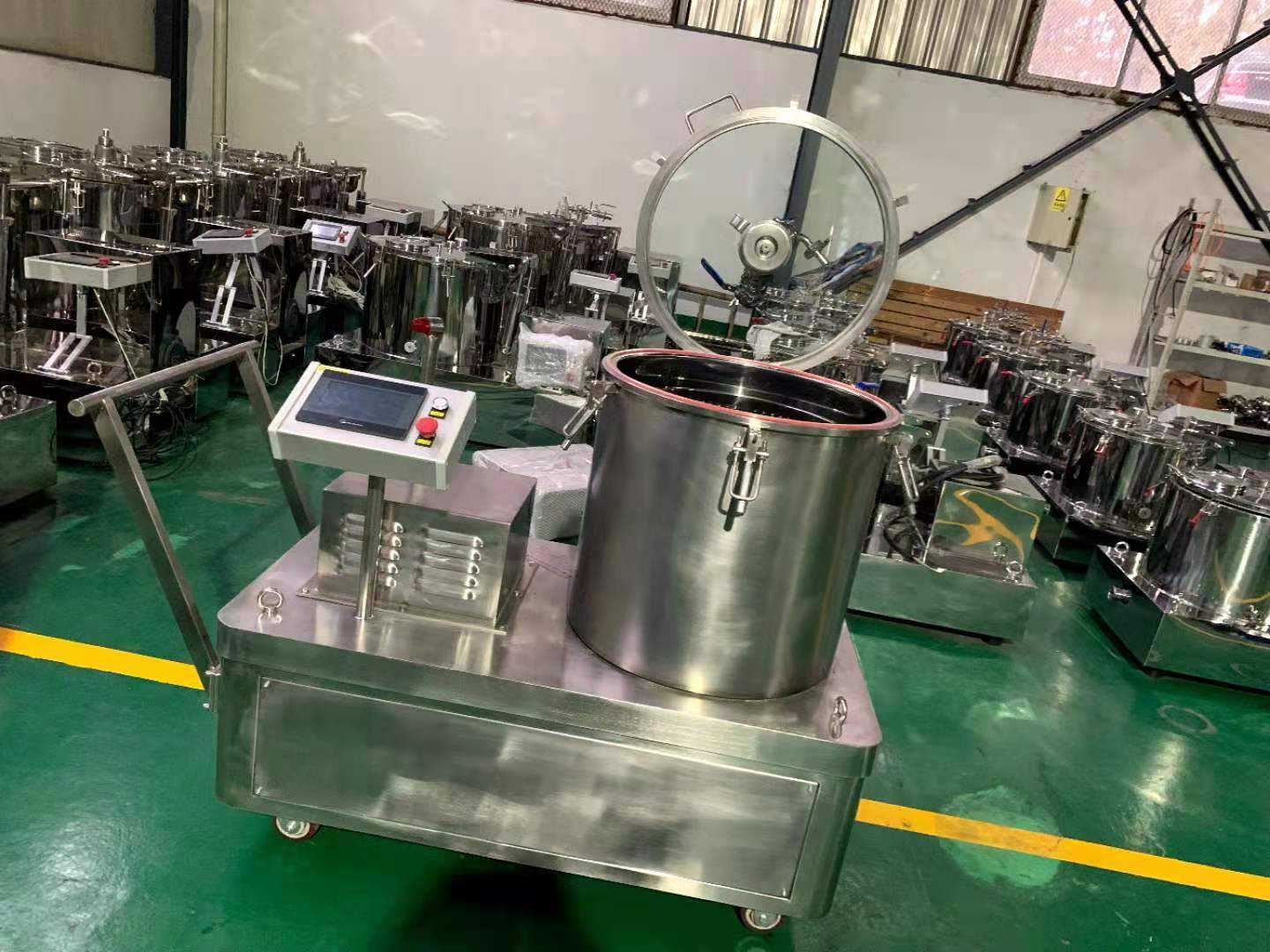

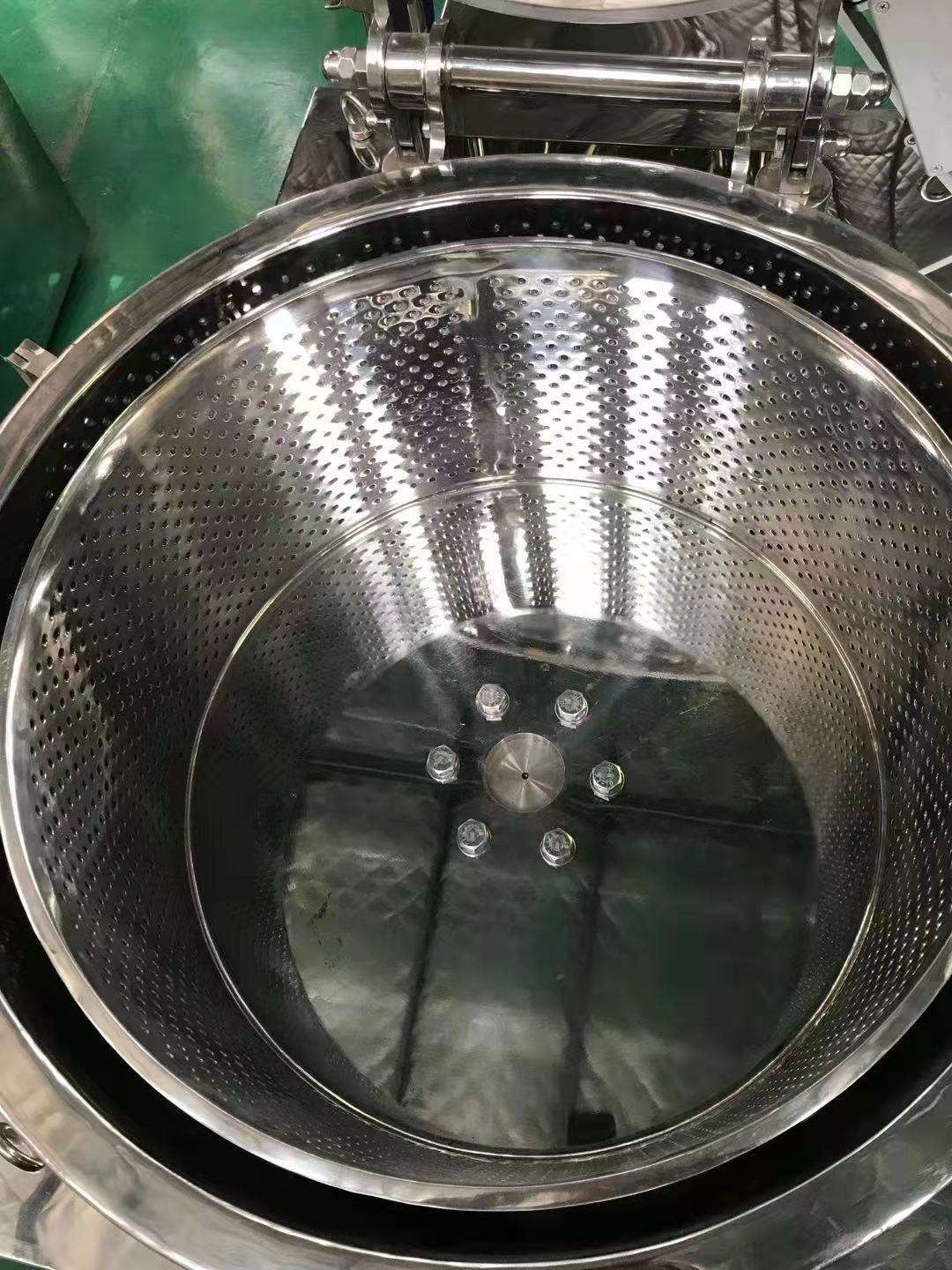

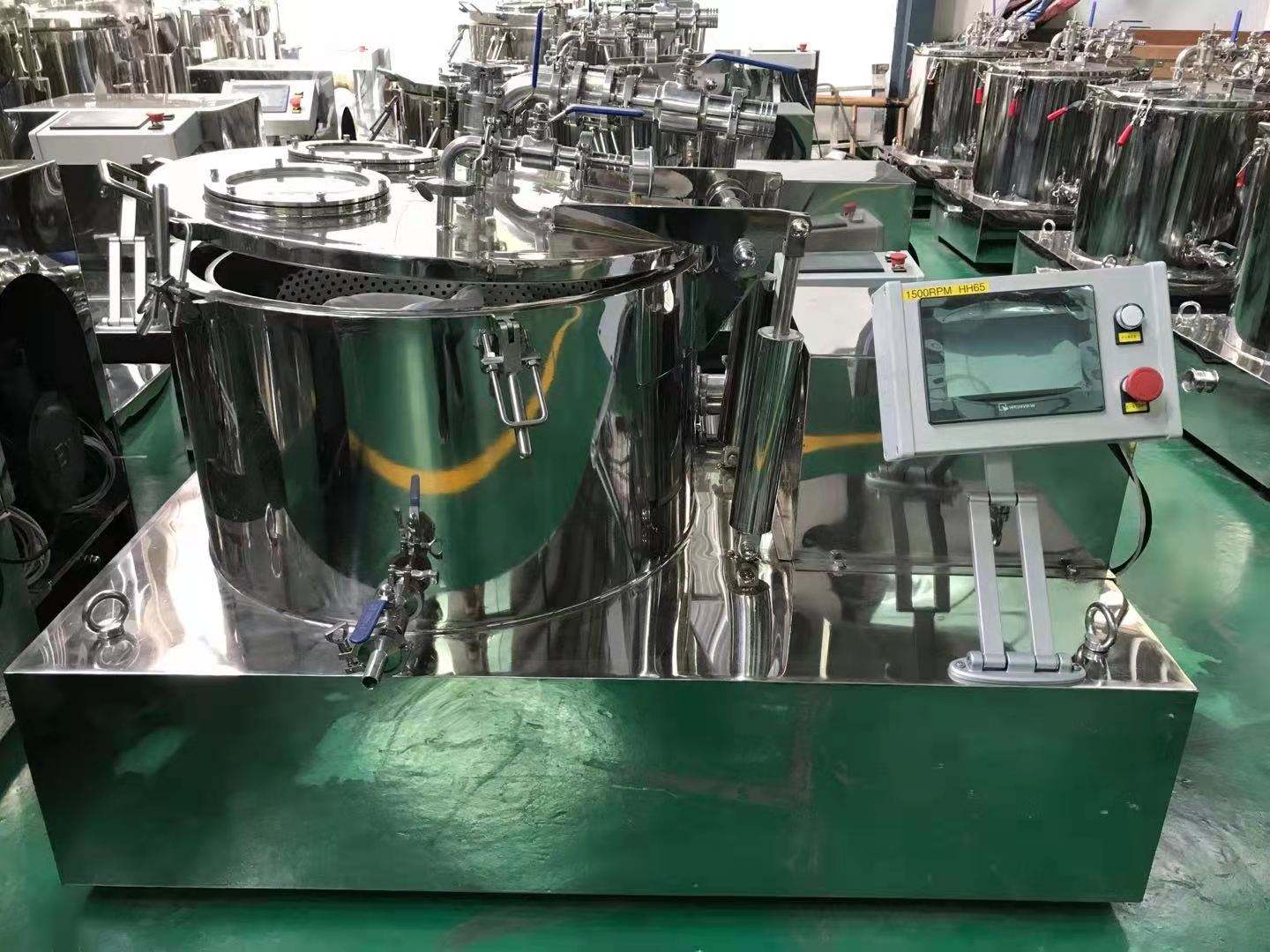

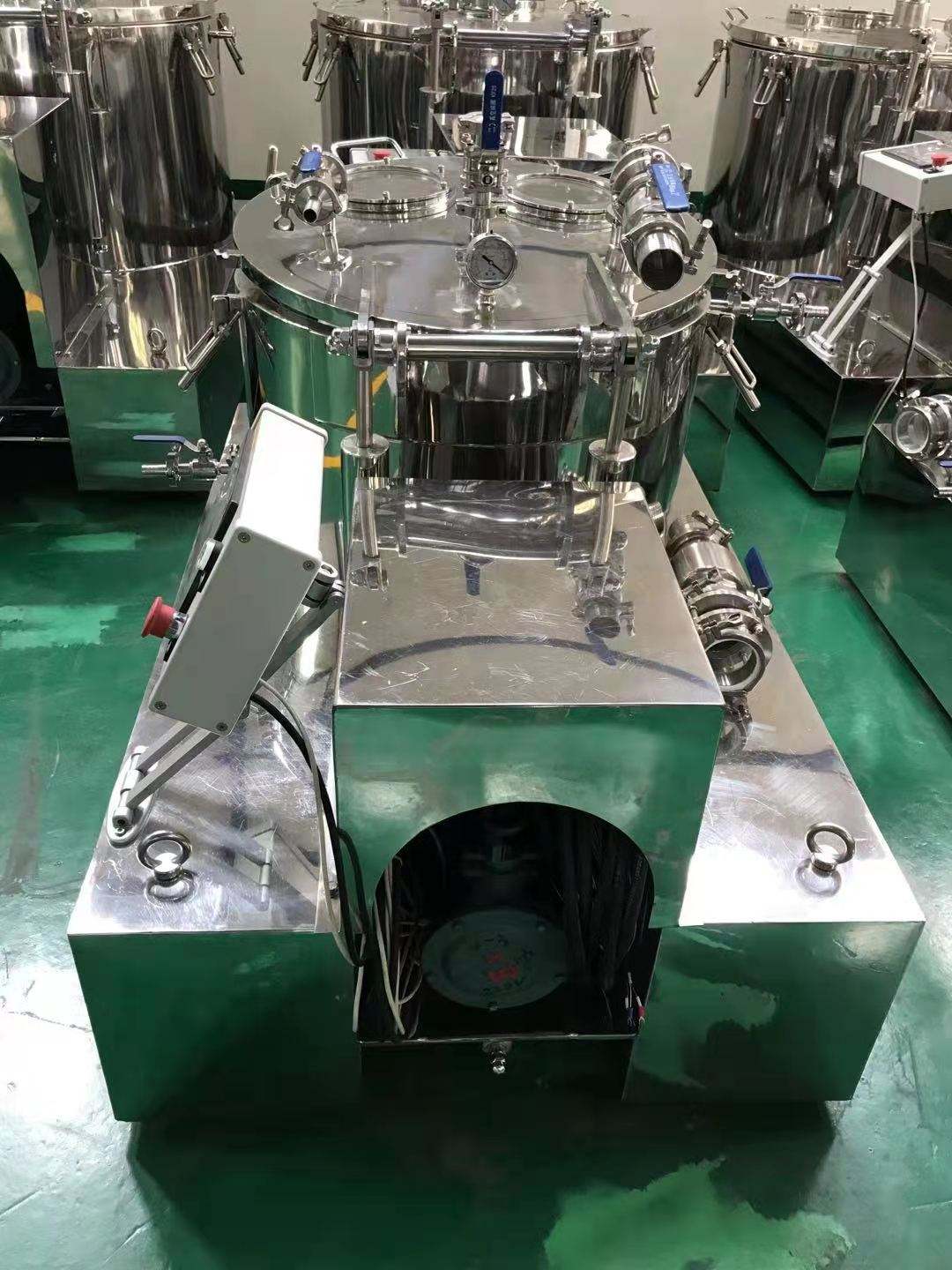

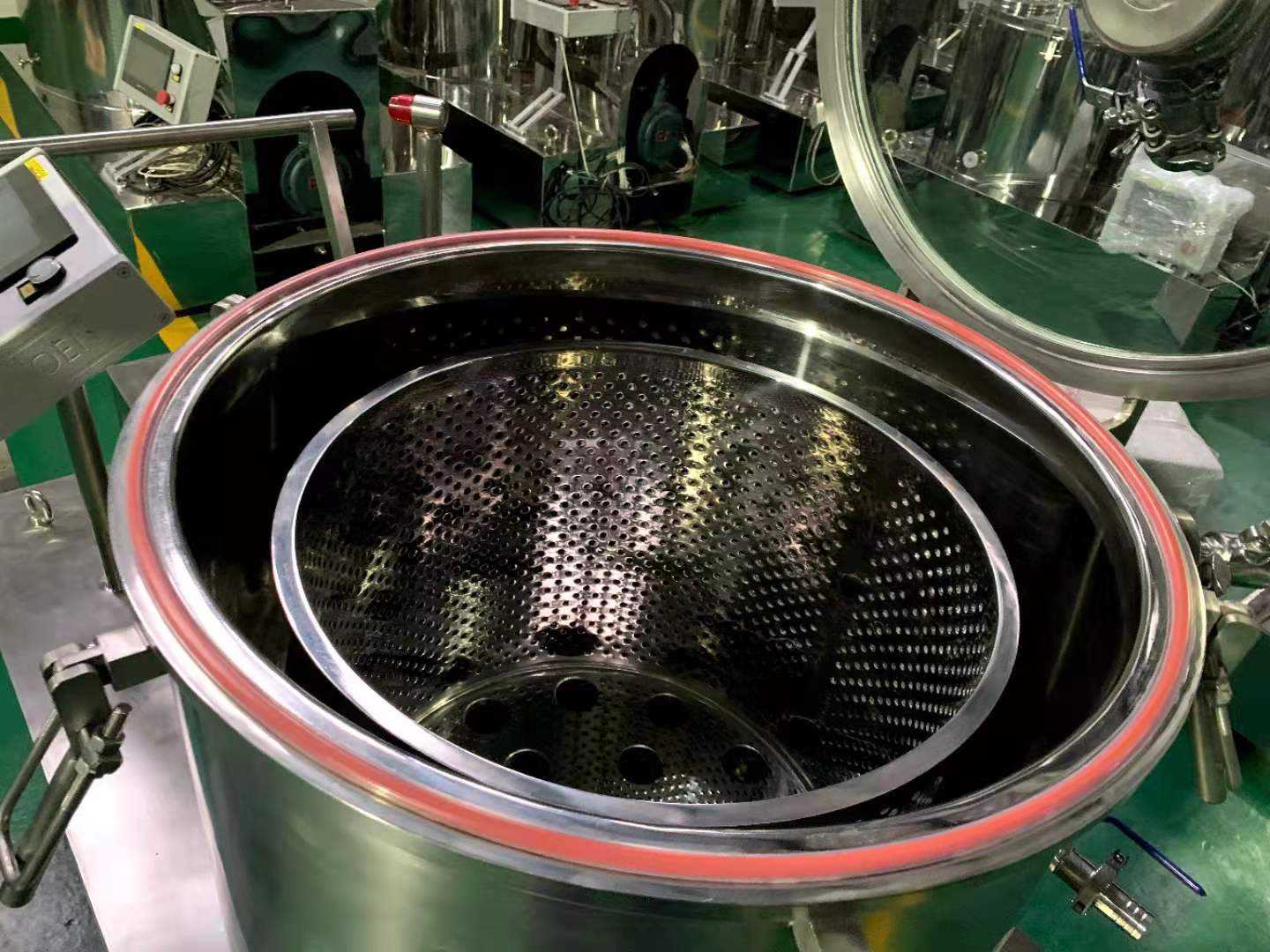

Details Images





Structure:

1. All contact parts (Including the main shaft and the basket bottom) are made of SUS304, there is the sanitary treatment for exposed parts, and there is no dead cleaning corners.
2. For the inlet/ outlet, the quick connector (sanitary grade) is used.
3. All seals are made of PTFE or fluoro-rubber, and the main shaft is water/ oil sealed by the double-layer fluororubber.
4. Ex-plosive motor: 3P, 220V (Or single phase, 220V)
5. PLC & touch screen: Siemens
6. Control cabinet: Variable frequency
7. There is a layer of cooling jacket for the machine, and there are four lifting rings on the machine base, by which it is
convenient to lift the machine.
8. Power cable: 10m
9. Two pieces of 600mesh filtering bags are included for one machine.
Specification
1
Working temperature
-50℃ ~ 50℃
2
Sight glass
Big
3
Thermometer
Be equipped
4
Pressure gauge
Be equipped
5
Filtering bag
Zipper type. Can be replaced by one person.
6
Basket diameter
450mm
7
Separating factor
400
8
Basket height
400mm
9
Working volume
65L
10
Rotary speed
1500rpm
11
Motor power
3Kw
12
Machine size (after packing)
1400×850×1080(mm)
13
Machine weight (after packing)
410Kg
14
Loading
12Kg/Batch
15
Alcohol volume
105L
16
Cooling liquid
21L
17
Cooling area
0.77m2
18
Inlet (with a valve & a sight glass)
Clamp: Φ50.5 Φ32
19
Vacuum valve (gas exhausting)
KF25
20
Vacuum opening (with a valve)_
Clamp: Φ50.5 Φ19
21
Liquid outlet (with a valve & a sight glass)
Clamp: Φ50.5 Φ38
22
Jacket inlet & outlet
Clamp: Φ50.5 Φ19

23
The basket can rotate clockwise or anticlockwise, the rotating time & the circulating time can be set, and can be controlled automatically or by manual.
The dewatering rotary speed and the time can be set.
Notes:If any change of data, we will not notify further
