Wholesale High Efficient Two Dimensional Motions Powder Mixer For Coal Slime

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Crankshaft connecting rod

  • 800

  • Chemicals, Food, Medicine

  • 480 L

  • 6 - 10 r.p.m

  • 240Kg

  • 1600 KG

  • SUS304, SUS304L, SUS316, SUS316L

  • New

  • Powder and granular materials

  • Powder, Medicine Processing, Chemicals Processing, Plastics Processin

  • Liaoning, China

  • Xianglong

  • 220V/380V

  • 3180*1020*1550mm, 1305*1255*1900mm

  • 3 kW

  • 2 years

  • High Productivity

  • Food & Beverage Factory, Food & Beverage Shops

  • United Kingdom, United States, Peru, Pakistan, Spain

  • Ordinary Product

  • Provided

  • Provided

  • 2 years

  • Motor, Gear

  • EYH Series Two Dimensional Mixer

  • 1600

  • 800

  • 200

Product Description

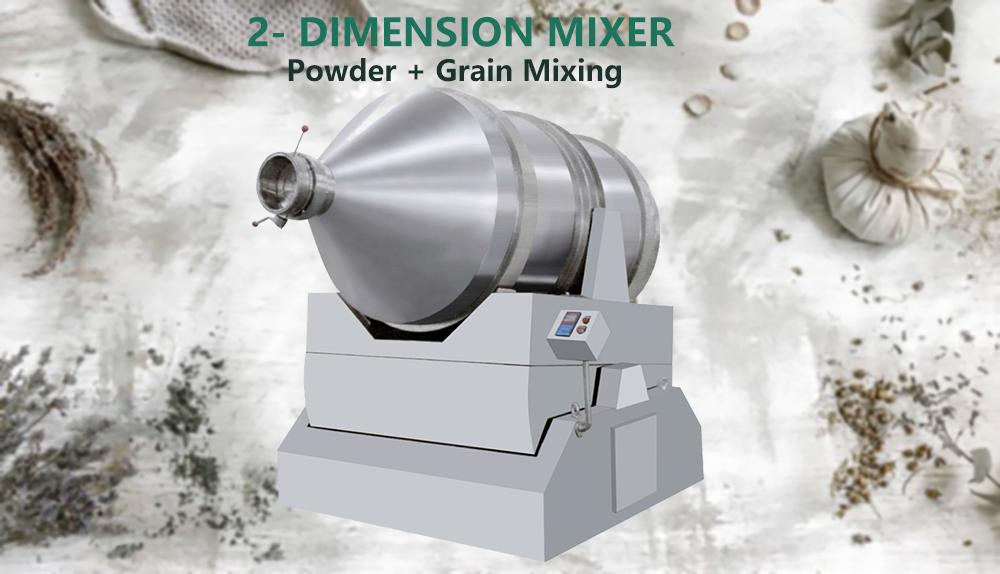

EYH Series Two Dimensional Mixer

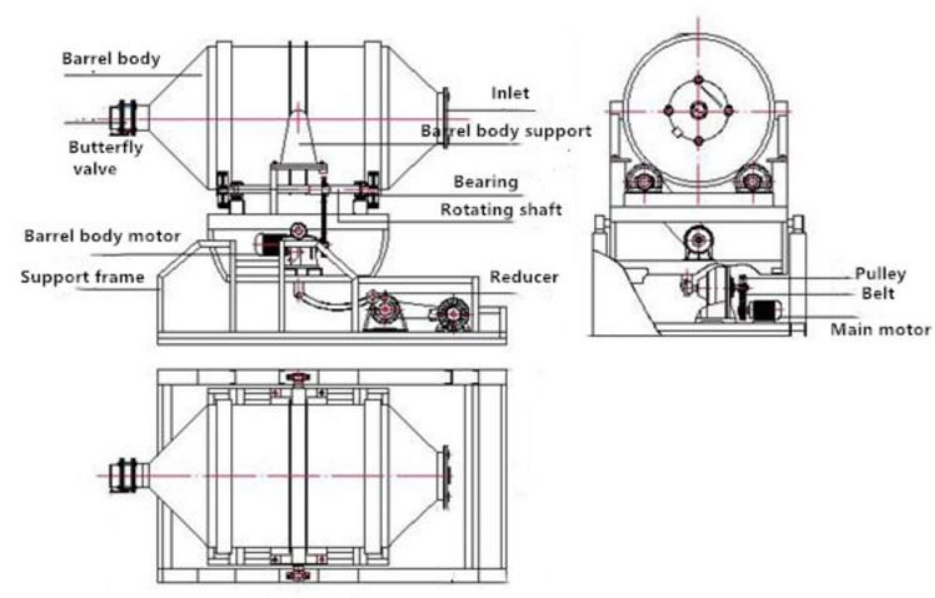

EYH series two dimensional mixer mainly consists of rotating cylinder, swinging rack and bottom case.The rotating cylinder lies on the swing rack, supported by four wheels and fixed by two stop wheels axially. Two of the supporting wheels are driven by rotating power system to make the cylinder rotate. The swinging rack is driven by a set of crankshaft which is installed on the frame and the swinging rack is supported by bearing assembly on the frame.
The rotating cylinder of EYH two dimensional mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swing of the cylinder along the swinging rack.Raw materials will rotate from left to right when the cylinder is rotating. Under the effect of the two motions, materials can be mixed fully in a short time.

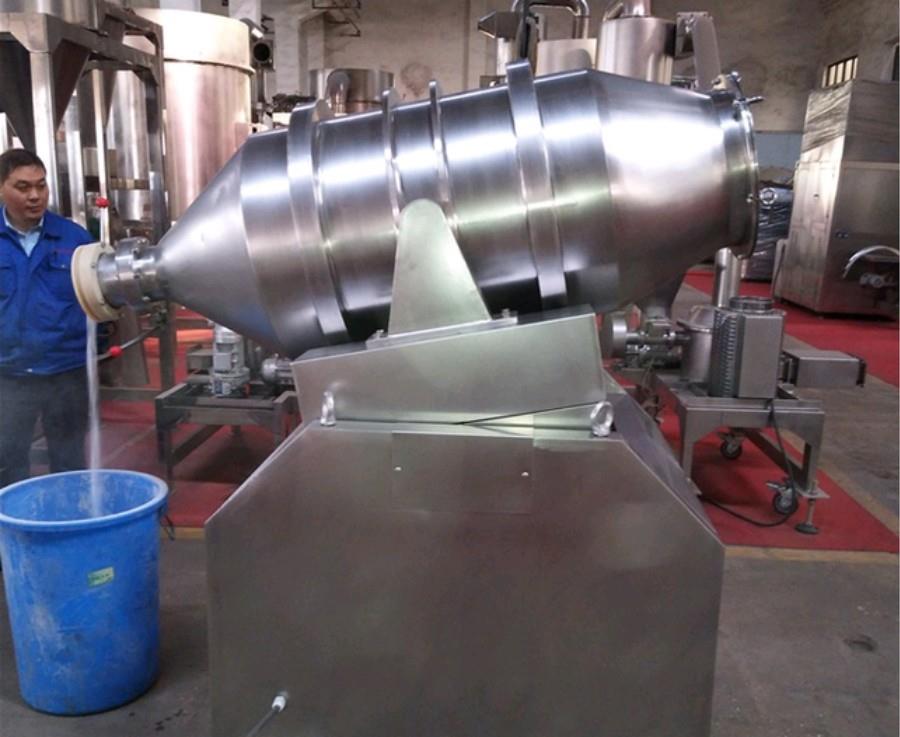

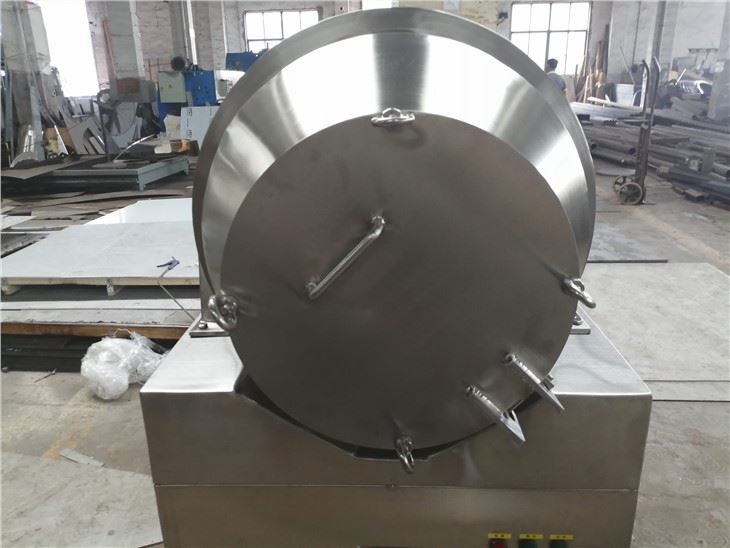

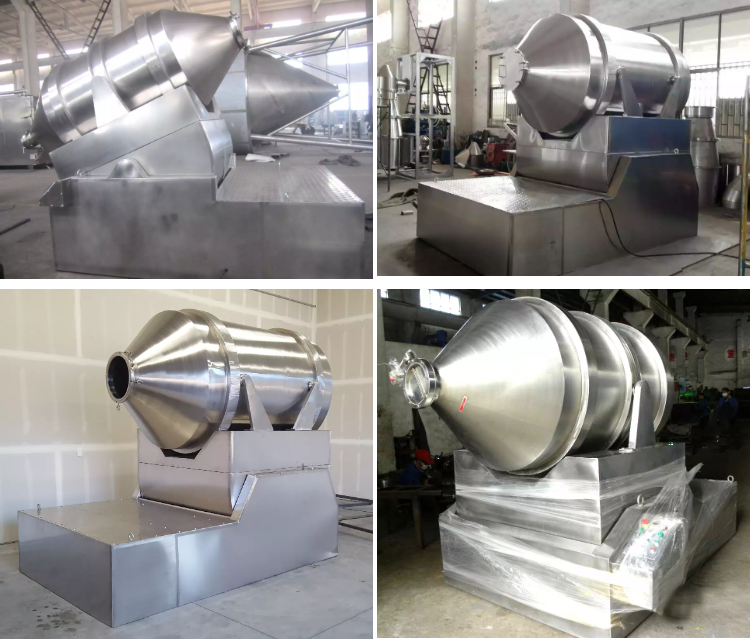

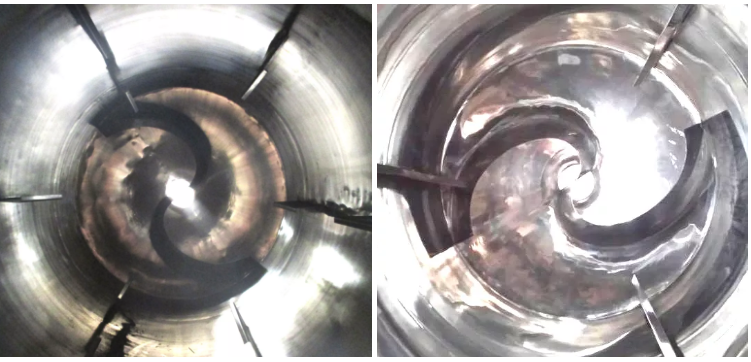

Details Images

Product Advantages：

EYH series 2-Dimension rotating chemical drum powder mixer is widely used for material mixing in chemical, foodstuff,
pesticide,pharmaceutical , plastic, dyestuff ,foodstuff industries, etc.The machine is particularly applicable to large tonnage (300L-20000L) material's mixing.
EYH two dimensional mixer is suitable for the mixing of powder and granule materials.
Specification
Model
Barrel Volume (Liter)
Maximum loading weight
( kg)
Rotating speed
R/ min.
Motor power (kW)
Dimensions (mm)
Weight
(kg)
EYH - 300
300
90
17.5/11
1.3
900*1350*1400
340
EYH - 600
600
180
15/9
3
1150*2050*1850
1150
EYH - 800
800
240
11/6.4
3
1300*2010*2000
1600
EYH - 1000
1000
300
8/5.4
3
1300*2200*1800
1700
EYH - 2000
2000
600
8.3/4.7
5.2
1660*2750*2120
2600
Related products
view more >> Recommended by seller

freeze dry machine/freeze dryer china/vacuum freeze drying equipment

$10,000.00 - $400,000.00 / Set

1.0 Sets

Low Cost Factory Price High Speed Manual Automatic Small Mini Automatic Flow Pack Horizontal Rotary Food Pillow Packing Machine

$3,300.00 - $49,800.00 / Set

1.0 Sets

Automatic Round Label Cans Table Top Flat Labeling Machine Small Round Bottle Labeling Machine

$5,600.00 / Set

1 Set

High Efficient Automatic Ampoule Filling And Sealing Machine,Glass Bottle Filling Machine

$7,390.00 - $8,300.00 / Set

1 Set

Solid Bowl Centrifuge Ejecting Disk Centrifuge For Waste Oil Yeast Centrifuge Separator

$5,899.00 / Set

1 Set

Pulverizer Grinding Equipment Hammer Grinder Machine Industrial Food Processor Machine

$19,000.00 / Set

1 Set

3d Series Three Dimensions Mixer For Chocolate Powder In Flour

$6,500.00 / Set

1.0 Sets

Large Capacity Disc Centrifuges For Microalgae Seperation

$5,899.00 / Set

1 Set
Packing & Delivery
Company Profile
Liaoyang Xianglong Internaitional Machinery Trading Co., Ltd. is originated from Liaoyang Pharmaceutical Machinery Plant (which was the first state-owned pharmaceutical machinery plant in China and was founded in 1947), and is professional in the manufacturing & trading of variable kinds of pharmaceutical devices, including separating machines, drying machines, liquid /powder /capsule/ pills filling machine, cartonning machines, membrane packing machines and glass-lined tanks, etc. With professional technicians and strict quality control system, our machines are widely applied in industries of pharmaceutical, petrol, chemical, food and environment protecting, etc., and besides our regular customers in China, our machines have been exported to many countries & regions in Europe, America, Southeast Asia, Africa, South America and the Middle East, etc., and good reputation is gained.
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
