Small Pharmaceutical Medicine Injection Two Needles Glass Ampoule Filling And Sealing Machine

Small Pharmaceutical Medicine Injection Two Needles Glass Ampoule Filling And Sealing Machine

Quantity:




Inquire Add to Basket

Production Capacity:
180-260pcs/min
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380V 50Hz
Place of Origin:
Liaoning, China
Year:
2021
Brand Name:
Xianglong
Dimension(L*W*H):
2400*1000*1500mm
Weight (KG):
680
Warranty:
2 years
Key Selling Points:
High-accuracy
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
PLC, Motor
Applicable Industries:
Food & Beverage Factory, pharmaceutical factory
Showroom Location:
Canada, United Kingdom, Mexico, Spain, United States, South Africa, Pakistan
Product name:
Ampoule Filling Sealing Machine
Material of Machine:
304/316 Stainless Steel
Processing Types:
Automatic Bottle Filling Sealing Machine
Filling material:
Flowing Liquid
Bottle type:
Glass Ampoule Bottle
Filling range:
1-2ML/5-10ML
Filling nozzles:
8
Machinery Capacity:
12000BPH, 8000BPH
Filling Accuracy:
99%
Certification:
GMP

Product Description

Product Description

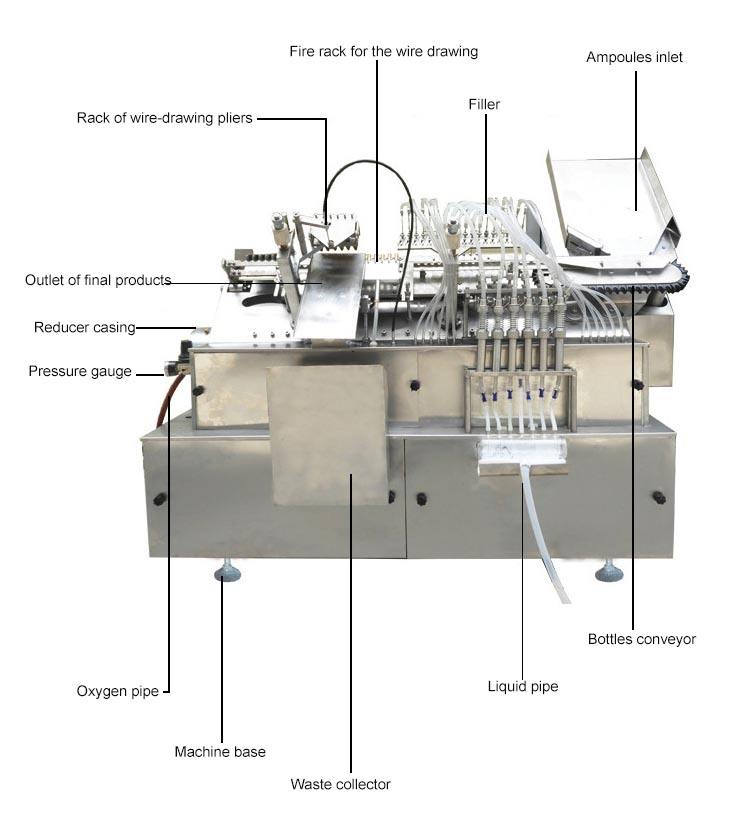

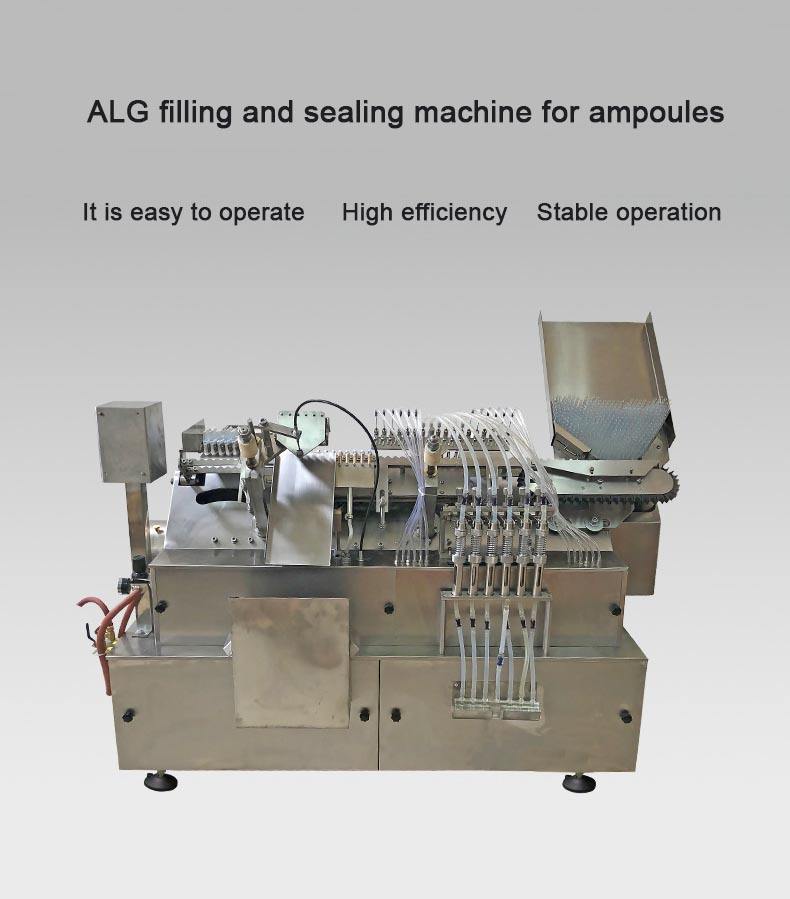

AGL Series Digital Display Glass Ampoule Liquid Filling And Sealing Machine

The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts
therectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.

Characteristics:

1.The ampoule bottle's feeding can be stopped while the machine is not stopped.
2.The filling can be stopped mechanically when lack of ampoule bottle.
3.There is the adjusting and displaying function for the rotating speed.
4.There are many filling heads in the filling stations.
5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.
6.Ampoule bottles' moving in/out is smooth and steady during the production.

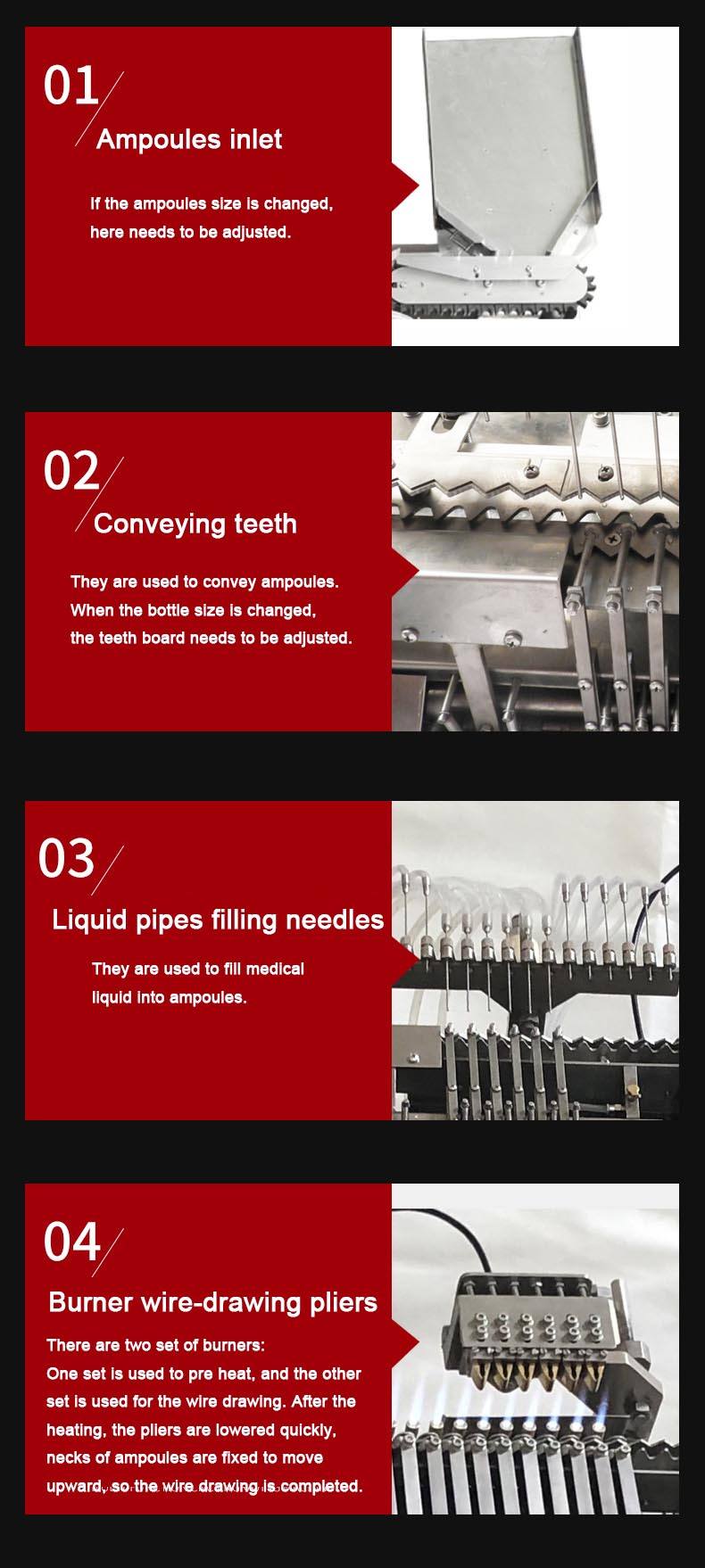

Details Images

Specification

Technical Parameters

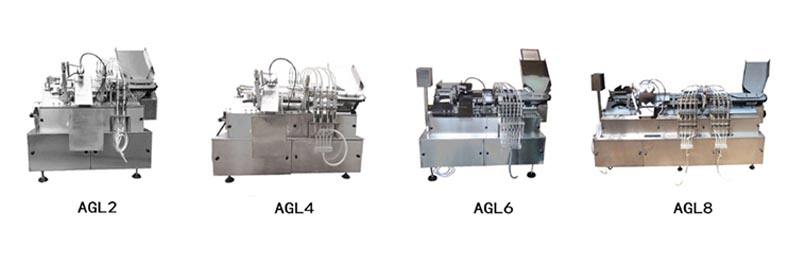

Model	AGL2	AGL4	AGL6	AGL8
Filling Needles	2	4	6	8
Specification (ml)	1-5/5-10	1-5/5-10/5-20	1-5/5-10/5-20	1-5/5-10
Output (Pieces/min)	45-60	90-130	135-200	180-260
Power (Kw)	0.37	0.55	0.55	0.75;1.5
Consumption of oxygen (Kg/h)	7	7	10	12
External dimensions (mm)	11007201500	15409801500	198010001500	240010001500
Weight (Kg)	250	330	470	680
Power supply	220V/380V;50HZ

Packing & Delivery

Company Profile

Liaoyang Xianglong Internaitional Machinery Trading Co., Ltd. is originated from Liaoyang Pharmaceutical Machinery Plant (which was the first state-owned pharmaceutical machinery plant in China and was founded in 1947), and is professional in the manufacturing & trading of variable kinds of pharmaceutical devices, including separating machines, drying machines, liquid /powder /capsule/ pills filling machine, cartonning machines, membrane packing machines and glass-lined tanks, etc. With professional technicians and strict quality control system, our machines are widely applied in industries of pharmaceutical, petrol, chemical, food and environment protecting, etc., and besides our regular customers in China, our machines have been exported to many countries & regions in Europe, America, Southeast Asia, Africa, South America and the Middle East, etc., and good reputation is gained.

FAQ

Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
