New Products Fully Automatic Hard Gelatin Capsule Liquid Filling Machine Line

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Liaoning, China

  • Xianglong

  • FULL AUTOMATIC

  • New

  • 3800*900*1900 MM

  • 2300 kg

  • 280 - 300

  • 98 %

  • Liquids and solids

  • 3#, 0#, 00#, 2#, 4#, 1#, 5#

  • Water Ring

  • 2 years

  • High Productivity

  • Food & Beverage Factory, Pharmaceutical factory

  • Canada, Turkey, United Kingdom, United States, Italy, Peru, Pakistan, Mexico, Spain, Japan, Australia

  • Ordinary Product

  • Provided

  • Provided

  • 2 years

  • Motor, PLC

  • Automatic Hard Capsule Filling Machine

  • 9KW

  • 98 %

  • 98%

  • 300 capsules/Min

  • ISO9001 GMP

Product Description

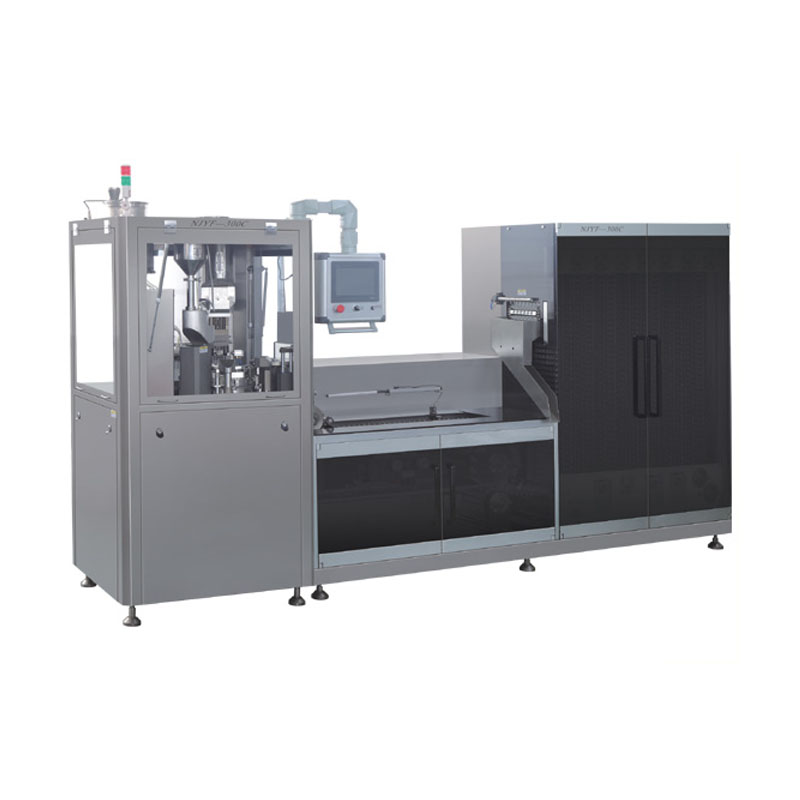

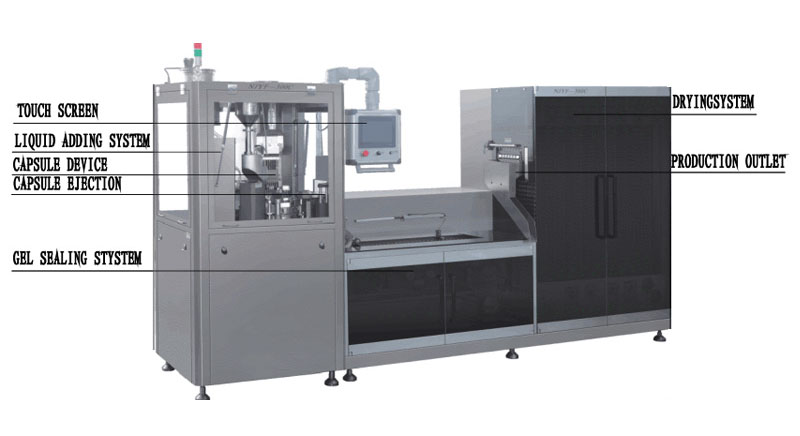

NJYF-300C full automatic hard capsule liquid Filling and sealing machine production line

NJYF-300C automatic hard-capsule liquid filling machine and sealing linkage line .the device can complete the filling of hard capsules (solution, suspension, microemulsion or hot solution) and sealing the capsule cap joint to make the capsule The contents are sealed in the process of packaging,transportation and use, which improves the stability and safety of the product. It can provide new modes of administration, improve the drug delivery problems of many drugs, and fill the domestic and foreign pharmaceutical and health care.

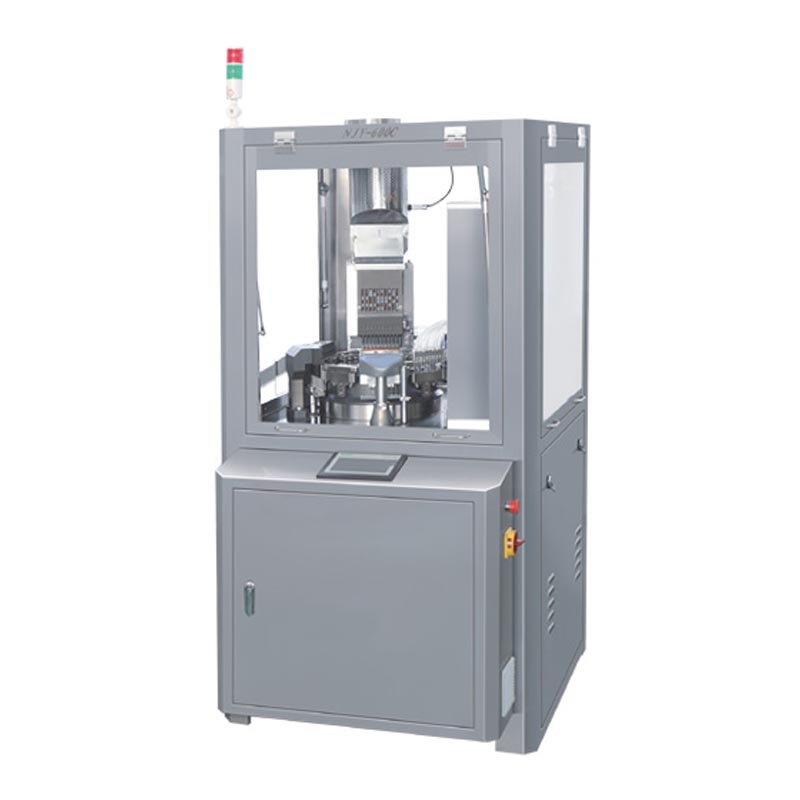

NJY-300C Hard Capsule Liquid Filling Machine

Product performance overview:

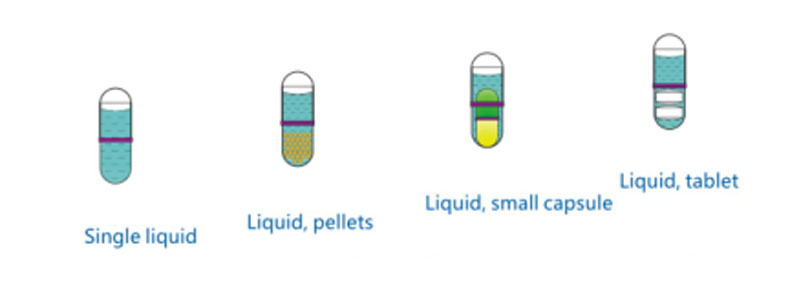

NJY-300C hard capsule filling machine, It can be filled in a hard capsule (solution, suspension, microemulsion). The ceramic pump is used to add liquid, and the servo motor controls the loading system to ensure the difference in loading, accurate measurement, fiber inspection, lack of glue, and automatic kicking.
This machine adopts the stepless frequency converter, which is convenient and intuitive to operate. As a new and convenient mode of administration and filling concept in the new century, this machine is the latest filling equipment for developing high-end products in the pharmaceutical, health care and other industries.

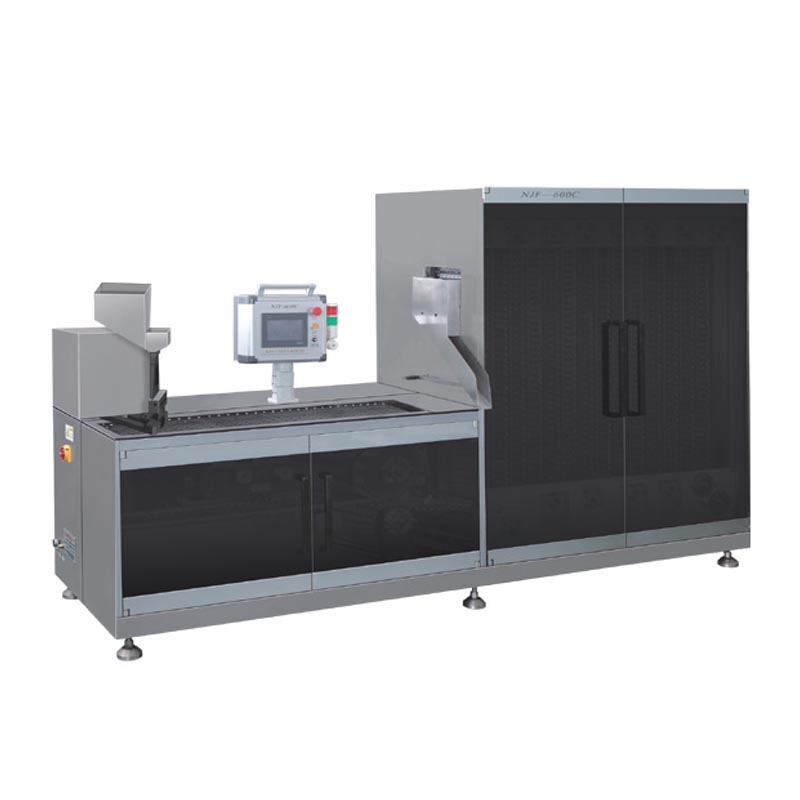

NJF-600C Hard Capsule Sealing Machine

Product performance overview:
The device can be applied to the sealing of the filled (liquid, granule, powder, etc.) hard capsules, so that the products are always sealed during packaging, storage and transportation. Effectively prevent the loading of volatile drugs, increase the shelf life of the drug, thereby improving the stability of the capsule and the safety of the drug. At the same time, it is also the safety of the pharmaceutical companies and health care products enterprises in terms of quality, sealing and anti-counterfeiting of high-end products. At the same time, the sealing products show the beauty of the products and achieve exquisite and gorgeous effects.

Product performance, features:

1. The equipment adopts man-machine interface control system, which automatically lacks capsules and lacks material alarm.

2. The capsule feeding machine has a vacuum positioning and separating mechanism, so that the probability of the capsule is over 99%. The fiber is automatically detected, and the capsule is missing in the upper and lower mold holes.

3. High-precision ceramic pump and servo motor dosing system are adopted to control the difference of the loading amount to about ±2%, and the dosage is accurate.

4. The sealing mechanism adopts the servo motor lifting device, which can be used to jog and fine-tune the rubber wheel to achieve the best effect of the sealing layer.

5. The sealing liquid tank is designed as a sealing structure, and is equipped with a heating and heat preservation system to ensure the viscosity of the glue liquid and effectively extend the glue liquid period.

6. The finished dry curing mold adopts hanging type and free rotation structure, which effectively improves the disassembly and unloading cleaning time.
Details Images

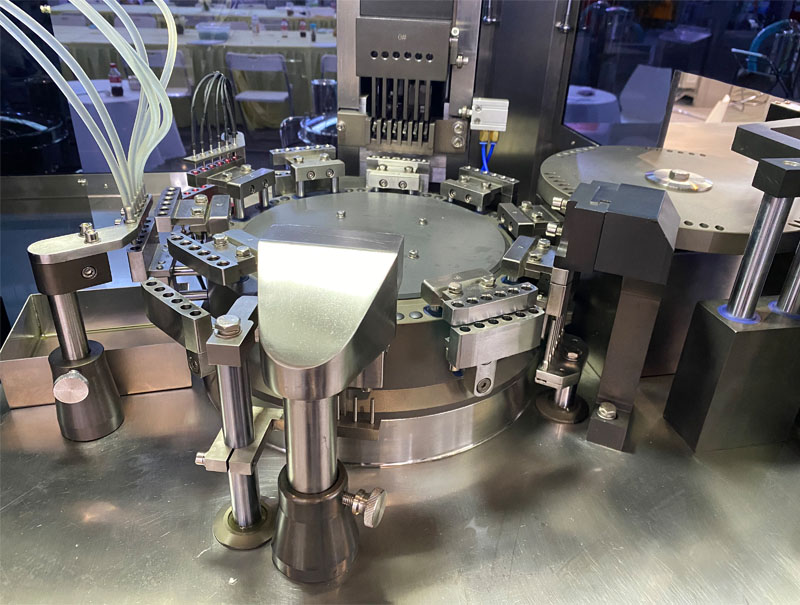

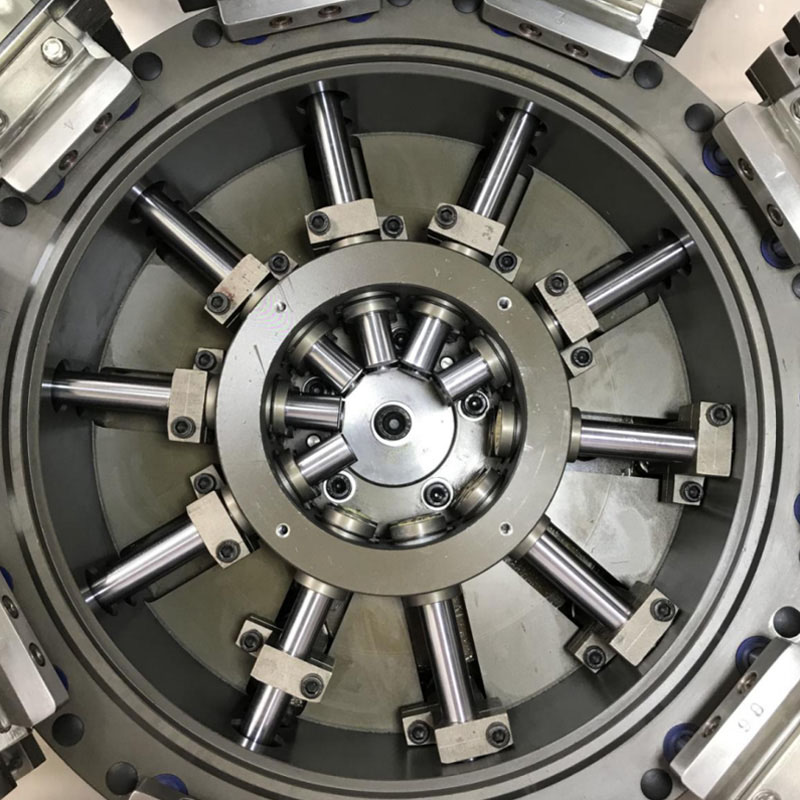

The 10-station rotary disc adopts integrated processing to achieve compact structure, no splicing gap, good sealing, easy to disassemble and easy to maintain, The fixed bracket shaft seal of the upper and lower modules adopts the oil-proof and dust-proof double-lip bone dust-proof ring. It can be repaired and maintenance-free without any dry sound, small volume, small load and high precision fully enclosed rotary disc.

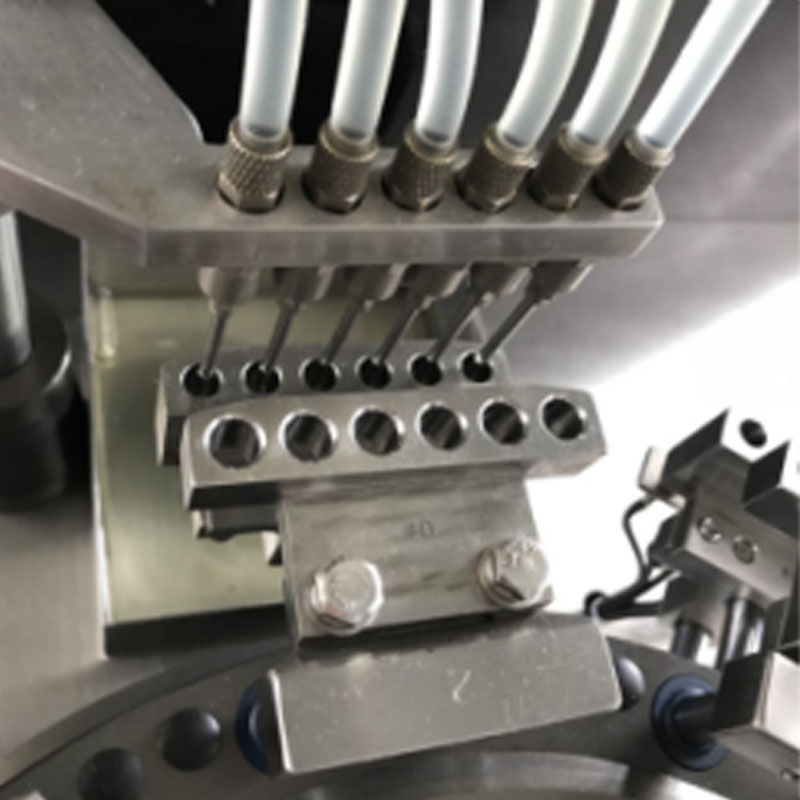

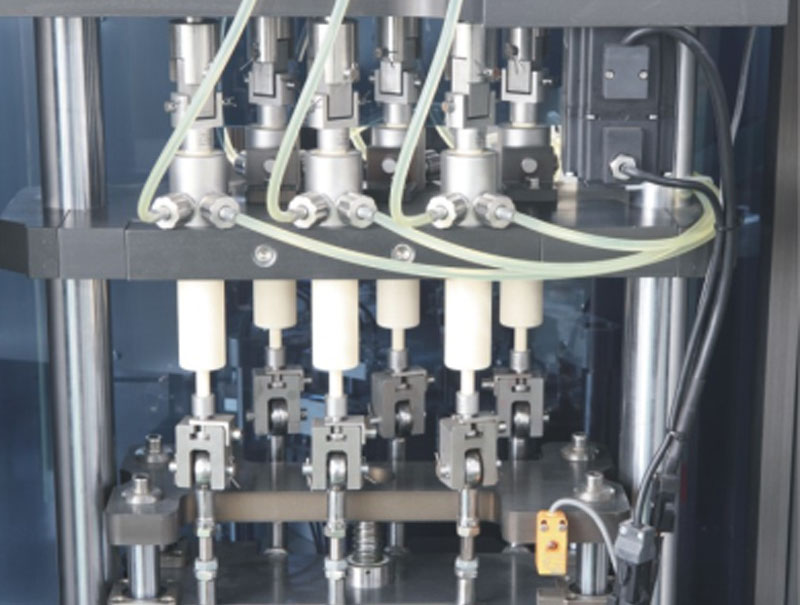

High precision ceramic pump
The liquid filling mechanism adopts a high-precision ceramic pump and a servo motor dosing system to control the difference in
liquid material loading in the capsule to about ±2%.

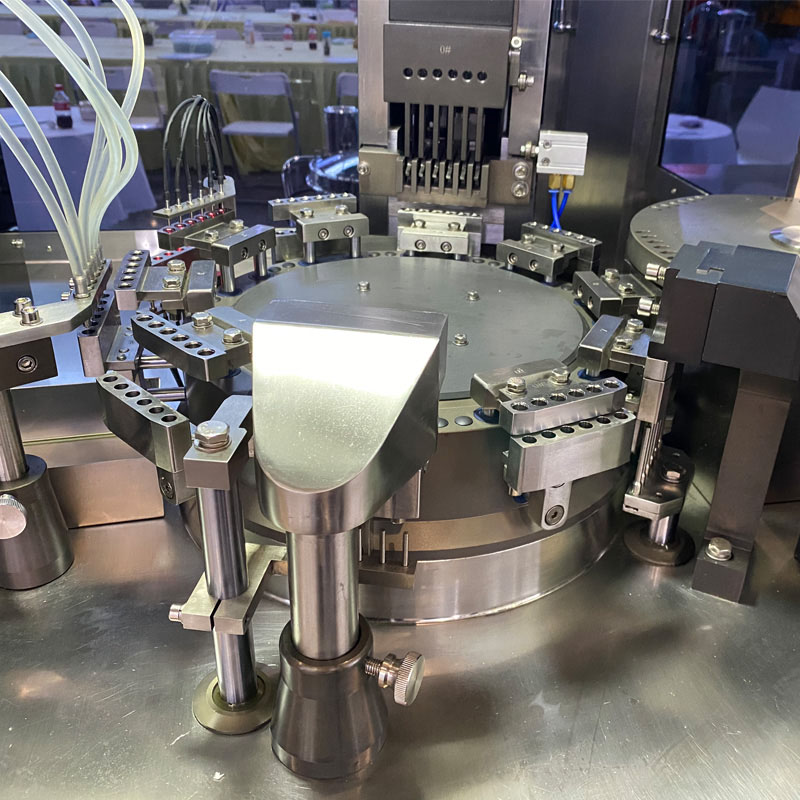

Rotary type capsule-out
The rotary-type capsule-out mechanism uses the mold turntable and the capsule-out turntable to perform synchronous work to ensure that the capsules in each set of die holes are evenly and orderly converted into the bag-out turntable.
High precision fiber inspection system
Due to the fast reaction speed, the fiber-optic sensing can realize non-contact detection with high precision, high resolution and good reliability. The device can quickly detect whether the hollow capsules are normally separated during the production process,
such as non-normal unseparated hollow capsules, optical fibers. After the system detects the collected data to the filling station
and the kicking station, the equipment runs to the filling station. According to the data analysis of the fiber inspection system, the filling station stops adding liquid, and the equipment runs to the kicking station. The abnormal unseparated hollow capsules are removed to ensure the stability of the equipment during the production process.

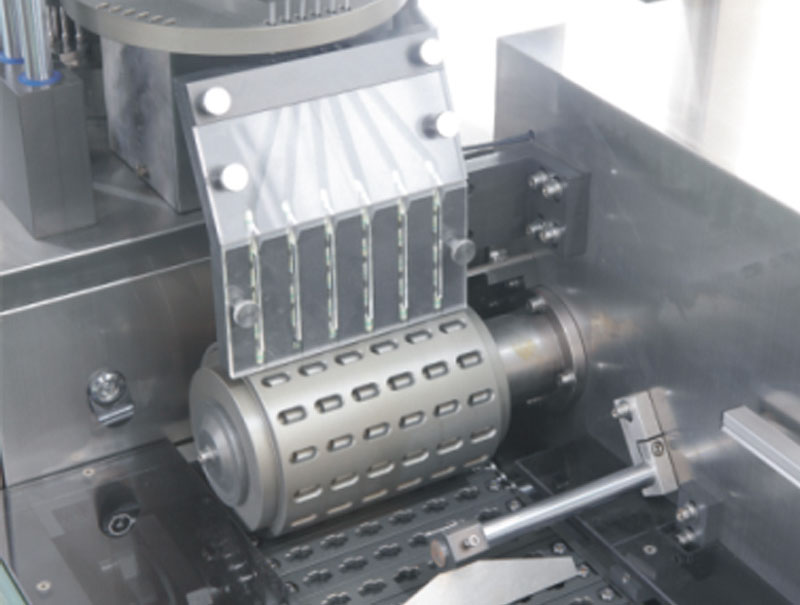

Capsule introduction mechanism
Capsule introduction mechanism, with capsule automatic guiding, optical fiber detection in the capsule plate, capsule high and low
position to control the speed synchronization function between the host and the auxiliary machine in real time.

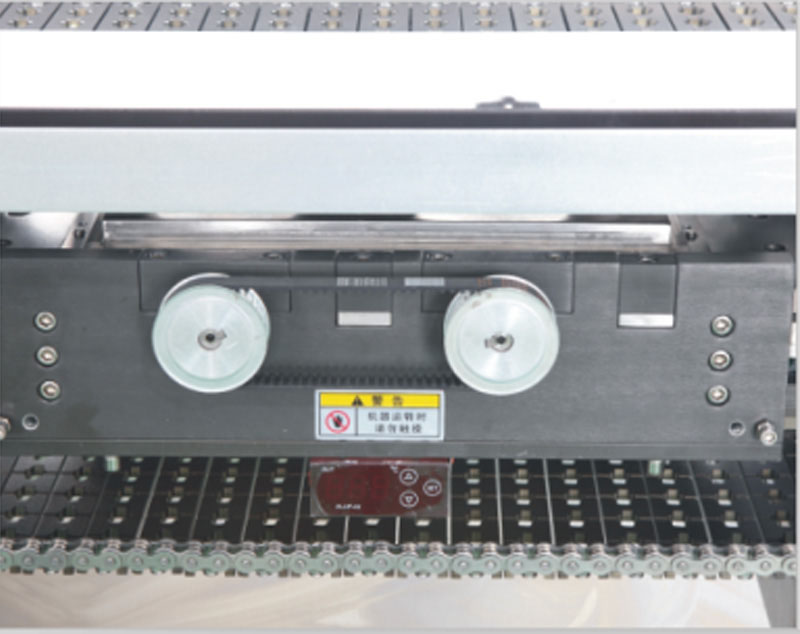

Gel sealing system
The lifting and sealing gel tray adopts the servo motor control system and the sealed storage glue to effectively prevent the glue
from evaporating in the air. There is no heat preservation device inside, the temperature can be adjusted, and the glue can reach
the optimal sealing state. The double rubber wheel is used. The secondary gluing technology improves the complete sealing effect at the seal.

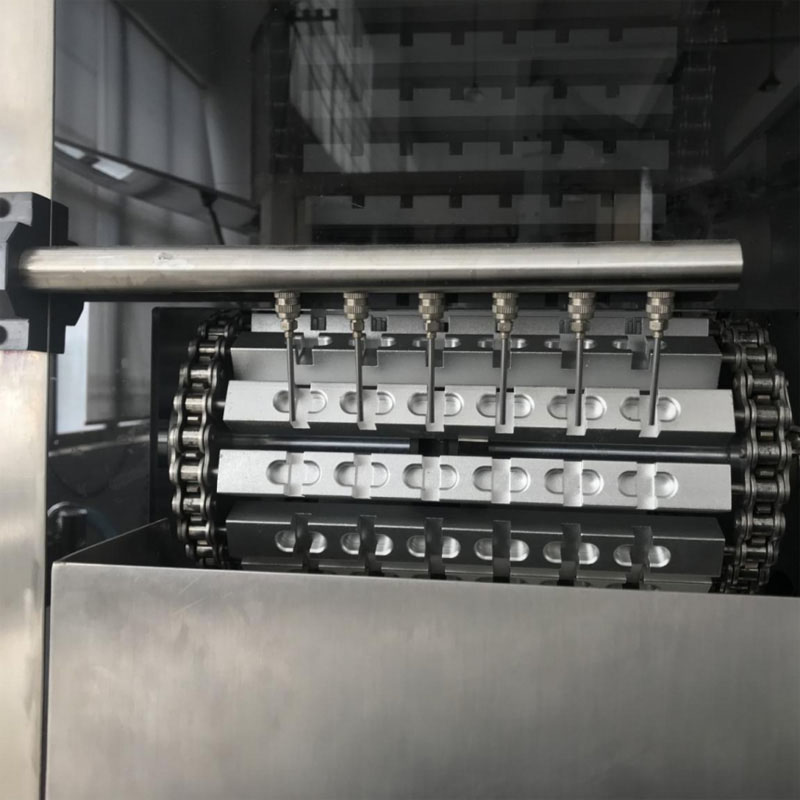

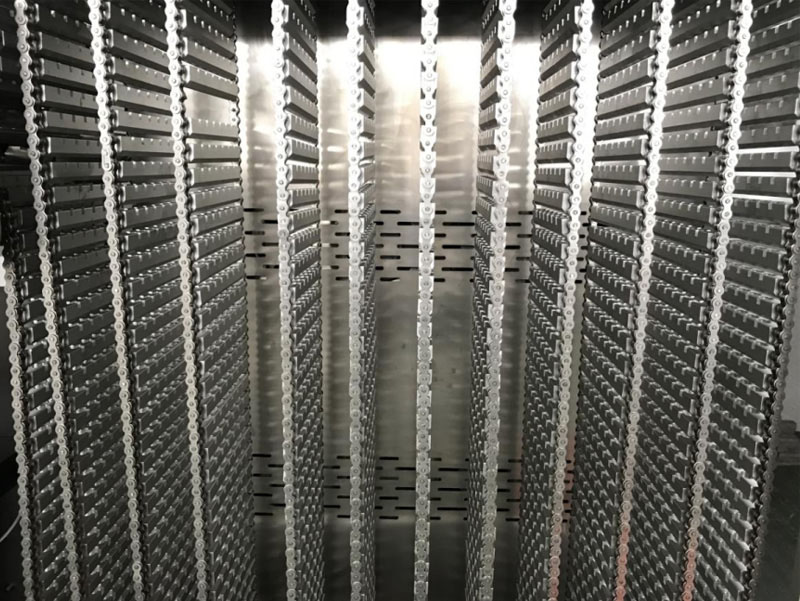

Free hanging drying template
After the sealing is completed, the capsule is introduced into the drying mold. During the air drying and solidification process, the capsule in the free hanging dry mold hole is always in a face-up state to make a snake-shaped reciprocating motion. At the same time, it is easy to disassemble in terms of the need to change the mold specifications and cleaning.
Capsule ejection device
There are 12 equal-limit ring in the finished product discharge bin. When the dry mold moves to the limit ring, there is a free
hanging type to become a fixed-clamp type, so that each unit dry mold rotates 360 degrees, and the finished product is exported to
In the discharge bin, plus 6 blowing pipes to prevent the finished product from remaining in the mold.
Specification
Model
NJYF-300C
Yield
18,000 tablets / hour
Sealable capsule filling
Solution, suspension, microemulsion
Mold hole number
6 holes
Applicable capsule
00-4# gelatin, plant capsule
Environmental requirements
Room temperature around 20C, humidity 40% -55%
voltage
Three-phase 380V/220V 50Hz
Total power
9KW
Compressed air
0.6Mpa
Total weight
2300KG
Dimensions
3800*900*1900MM (length × width × height)

NJF---600C hard capsule sealing machine The Technical Parameters
Production output
Production output 36,000 / hour
Adapt to capsule
00-4# gelatin, veggie capsule
Template die hole
e 6 holes
Sealing material
Powder, pellets, granules, liquid
Input power supply
Three-phase 380V/220V 50Hz
Total power
4KW
Switchboard weight
1200KG
Dimensions
2800*900*1900mm (length * width * height)
Environmental requirements
20 °C or so (room temperature) humid ity 40% -55%
