Full Automatic Medical Dressing Paste Packing Machine Surgical Wound Dressing Making Machine

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • 2 years

  • Other

  • Manufacturing Plant, Other, Medical industry

  • United Kingdom, United States, Pakistan, Russia, Spain

  • Provided

  • Provided

  • Ordinary Product

  • 2 years

  • PLC, Motor

  • New

  • Medical

  • Medical dressing patch

  • non-woven

  • Automatic

  • Electric

  • 380V

  • 5KW

  • Liaoning, China

  • Xianglong

  • 2000 KG

  • 4050*1000*1800mm

  • Multifunctional

  • Rotary cutting medical dressing forming machine

  • 30 m/min

  • 50-250 mm

  • 30-300 mm

  • ±0.2 mm

Product Description

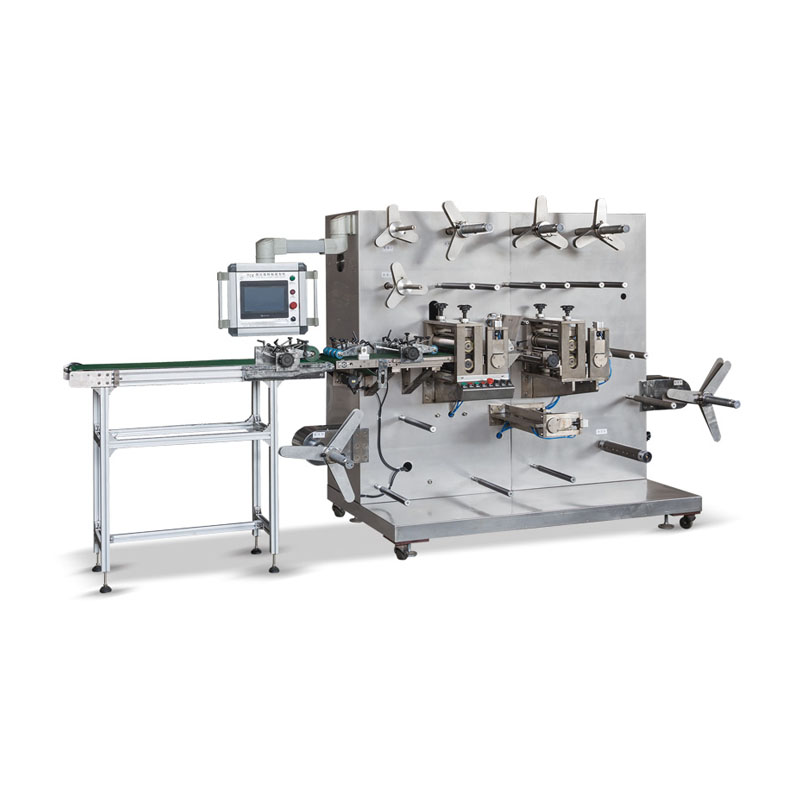

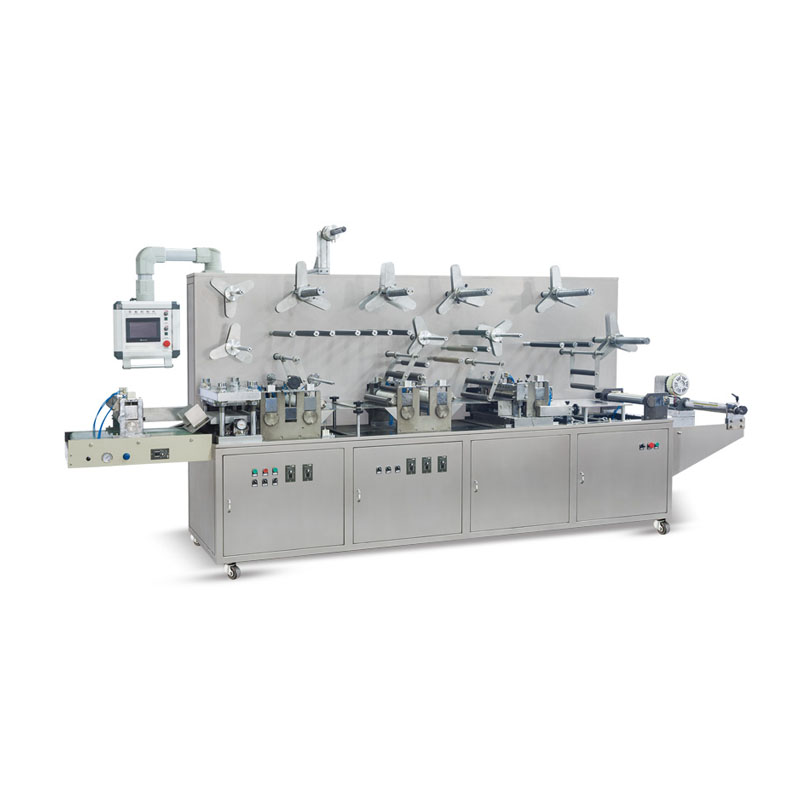

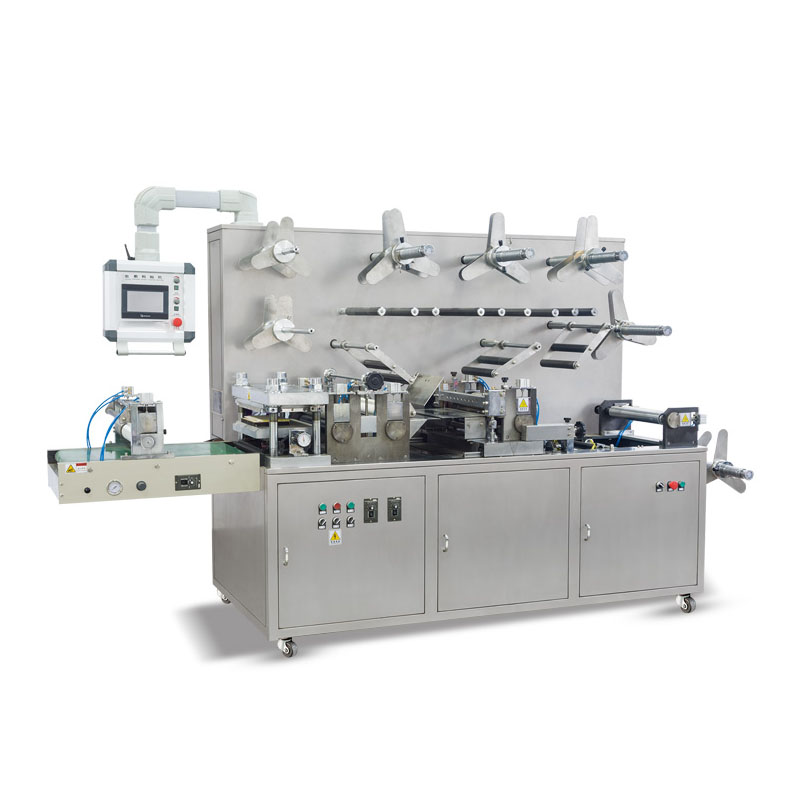

Rotary cutting medical dressing forming machine

Description:

1.This machine is used in general surgery and surgery to protect the wound. It has advanced functions, such as automatic
stripping, pasting, compounding, cutting, rolling cutting of adhesive tape, PU film, absorbent pad, stripping paper, roll
cutting,etc.
2.The machine is easy to operate and has a stable interface.

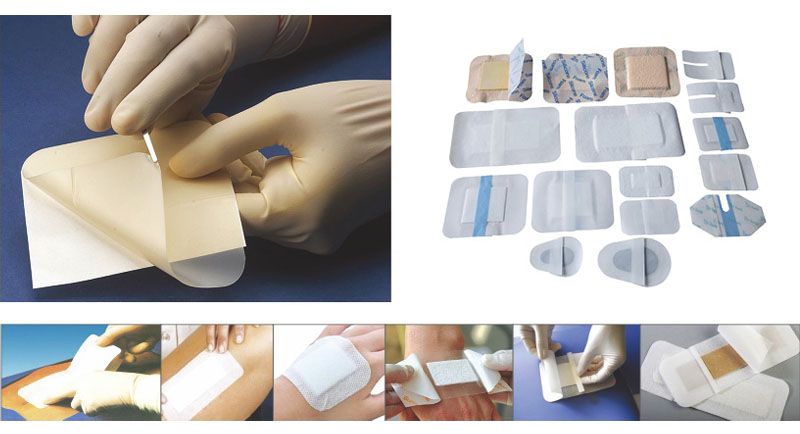

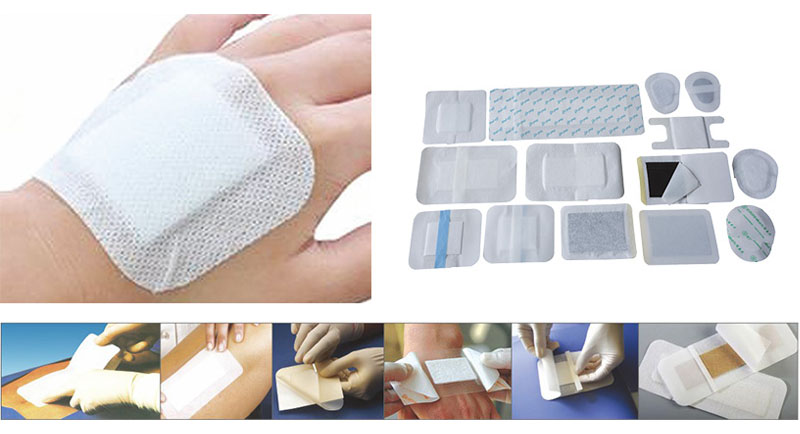

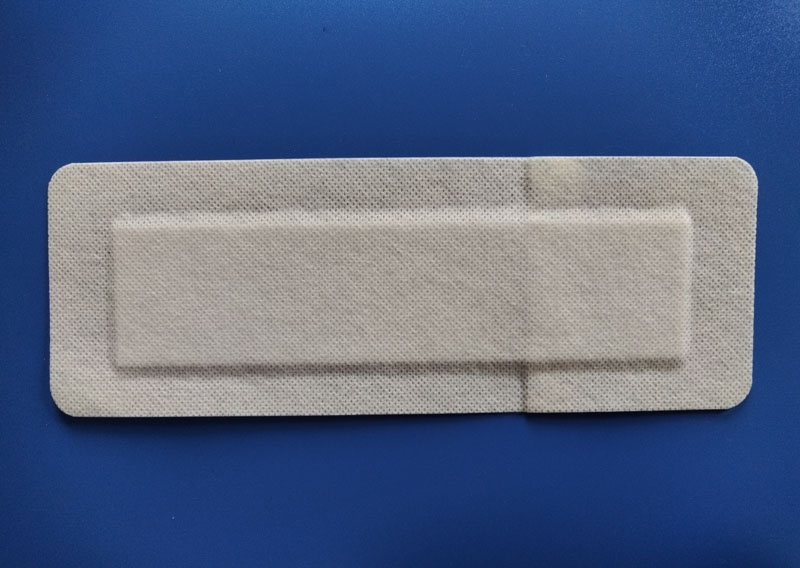

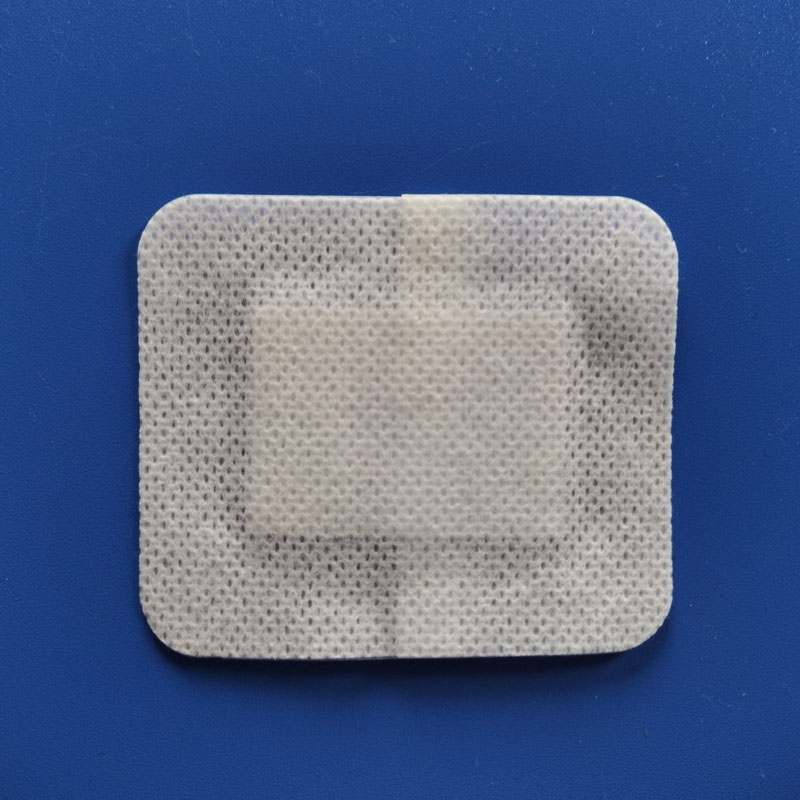

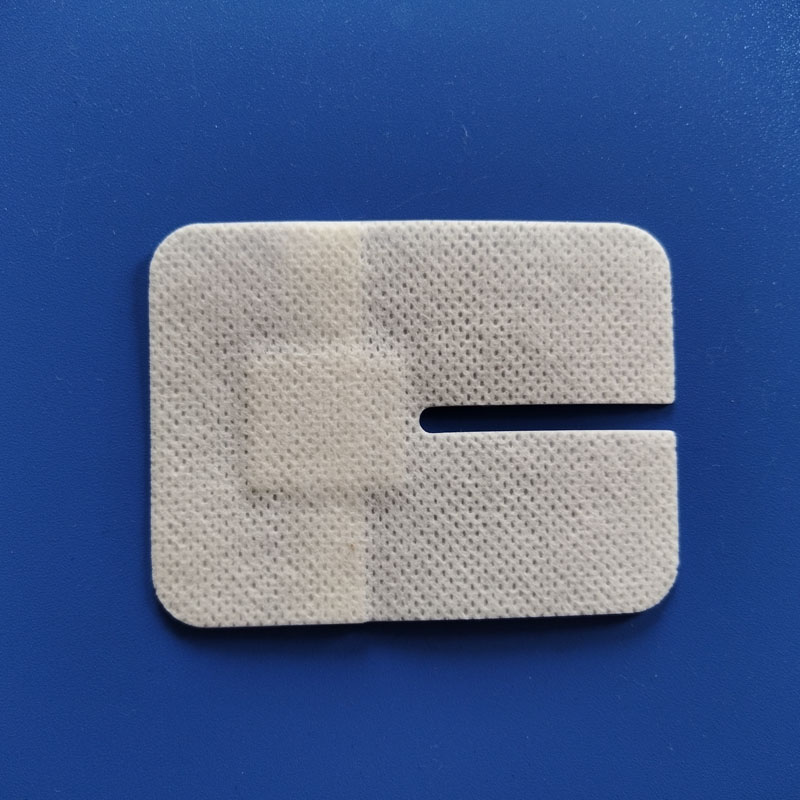

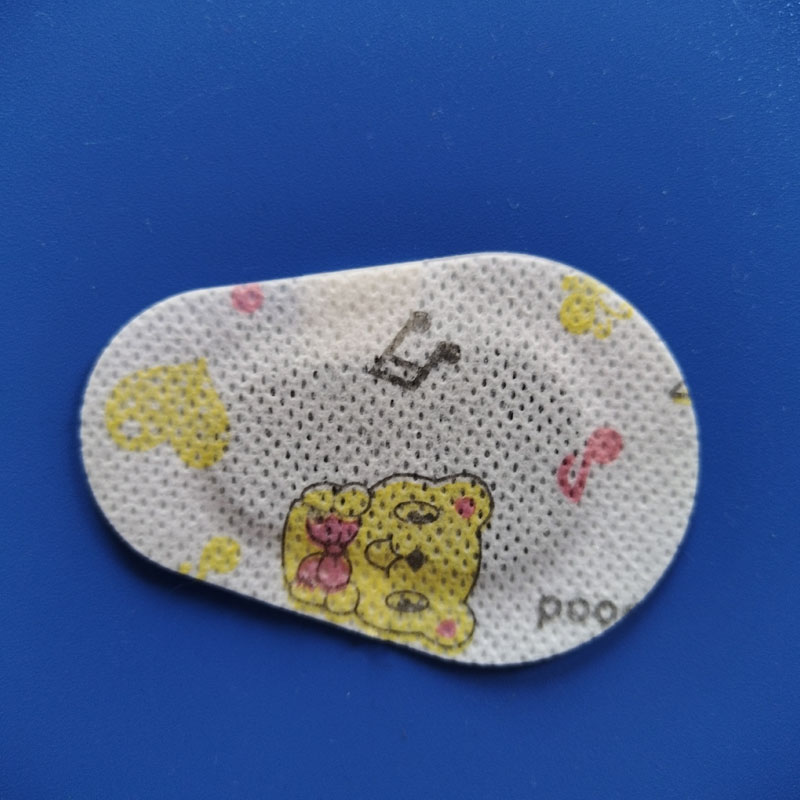

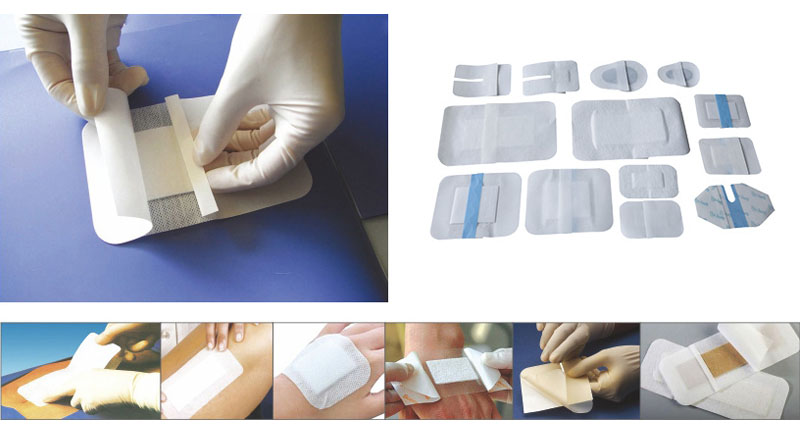

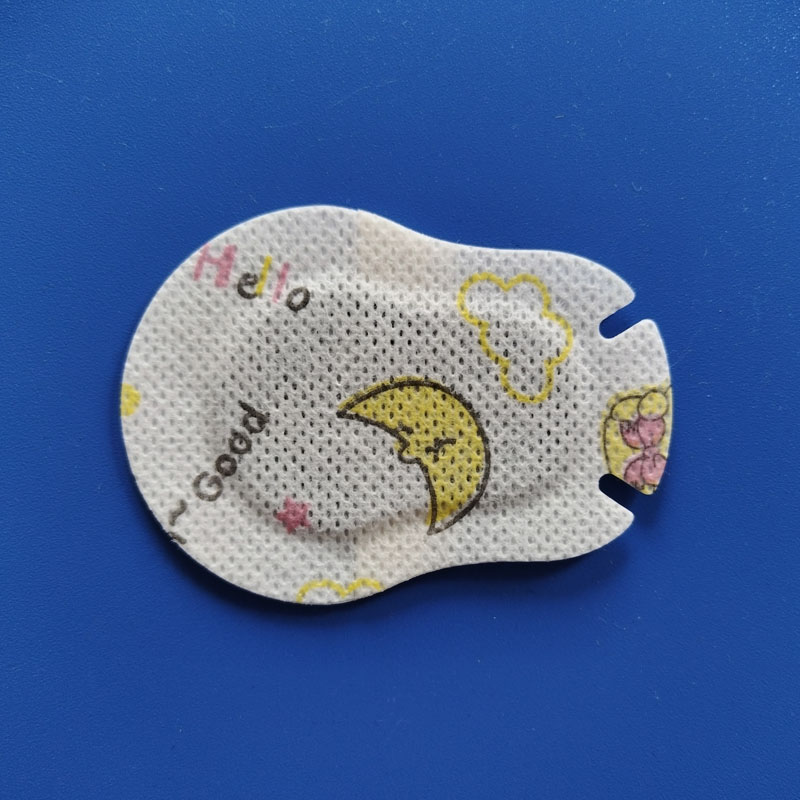

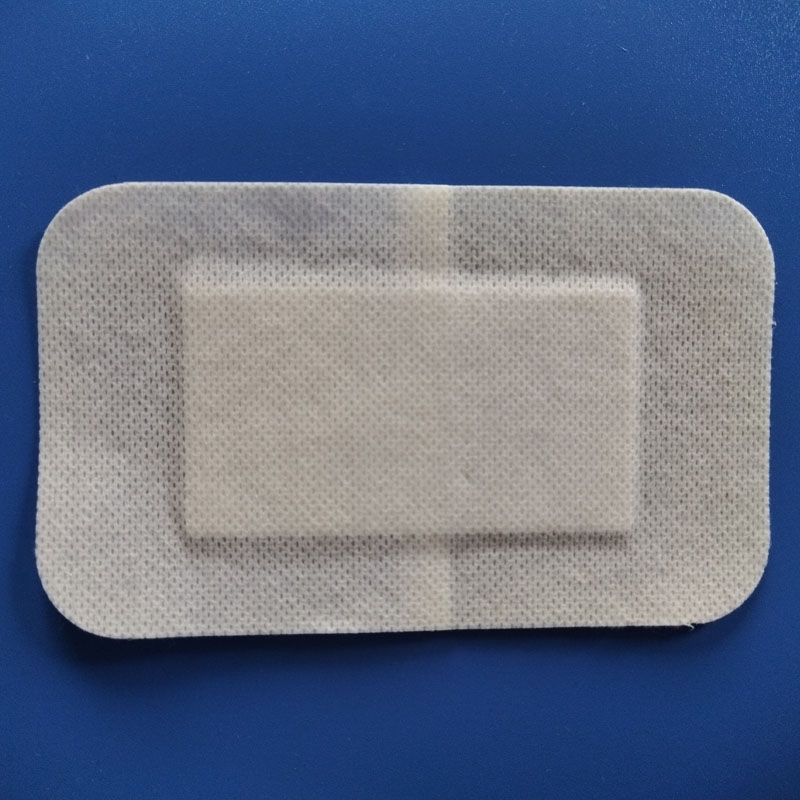

3.This function production:Pu dressing paste, medical dressing paste, plaster paste, eye patch, etc.
Specification
Technical parameters
Model
FLT-200/250
Cutting Speed
30 m/min
Cutting Width
50-200 mm(FLT-200) / 50-250 mm(FLT-250)
Cutting Length
30-300 mm
Positioning Accuracy
±0.2 mm
Total Power
5 kw
Power Supply
380V±10% 50Hz(three phases four lines)
Overall Dimension
4050*1000*1800 mm
Weight
2000kg
Notes:If any change of data, we will not notify further
Other Products
Medical Dressing Forming Machine
1.This machine is applied to producing wound-protection dressing medicated gauzes for surgery and wound in surgery
operation.Namely,it can automatically strip,stick,recombine and cut off such drum-shaped materials as adhesive tape, absorbent
cushion and release paper, shaping once and for all.It has the function of automatic feeding waste after forming.
2.This machine adopts double microcomputers to locate through photo-electricity control; displaying states with digital; controlling length with panel; alarming and sending out automatically on arrival of digital and with the function of protecting
data when power cut.

Main Performance & Features

This machine can produce abnormal dressing medicated gauzes of all varieties. Easy to set length; high accuracy at location;steady at delivering material;with even tension and regulating peed through frequency conversion.The whole machine operates easily and simple with its steady functions.
Technical parameters
Model
FLT-300/400
Cutting Speed
10-90 (piece/min)
Outer Forming Width
40-300 mm(FLT-300) / 40-400 mm(FLT-400)
Length of Absorbent Cotton
20-300 mm
Positioning Accuracy
±0.2 mm
Total Power
3.5 kw
Power Supply
380V±10% 50Hz(three phases four lines)
Overall Dimension
4620*1060*1940 mm / 4620*1160*1940 mm
Weight
2000kg(FLT-300) / 2400kg(FLT-400)

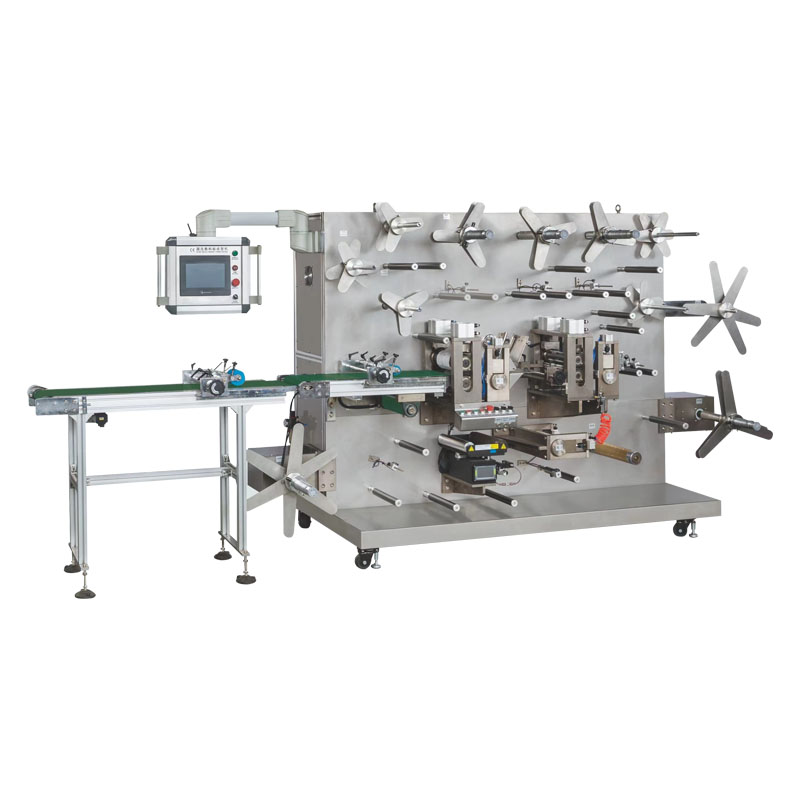

Multifunctional Medical Dressing Forming Machine
Product Features：1.This machine is applied to producing wound-protection dressing medicated gauzes for surgery and wound in surgery operation.Namely,it can automatically strip,stick,recombine and cut off such drum-shaped materials as adhesive tape, PU film,absorbent cushion and release paper, shaping once and for all.It has the function of automatic feeding waste after forming.
2.This machine adopts double servo motor, PLC, touch screen control. It has high positioning accuracy, easy to operate, stable
performance.
3.It can productiong Silica gel dressing, PU dressing, medical dressing, eye paste and so on.
Technical parameters
Model
FLT-300/400
Cutting Speed
30-90 (piece/min)
Cutting Width
50-300 mm(FLT-300) / 50-400 mm(FLT-400)
Cutting Length
60-200 mm
Positioning Accuracy
±0.2 mm
Total Power
4 kw
Power Supply
380V±10% 50Hz(three phases four lines)
Overall Dimension
4499*1060*1950 mm / 4499*1160*1950 mm
Weight
2600kg (FLT-300) / 2900kg(FLT-400)
Round Compression Dressing Machine
Product Features:
1. The dressing forming machine used in general surgery and surgical surgery to protect the wound, namely, after adhesive tape, PU
film, absorbent pad, stripping paper, silicone paper roller material automatic stripping, pasting, compounding,cutting off, forming, then automatic waste collect and other advanced functions.
2. The machine adopts imported seven servo motor, motion controller, man-machine interface, high precision servo positioning
correction has the advantages of convenient operation, stable performance.
3. The functional production: PU dressing, medical dressing, plaster paste, eye paste and so on.
Technical parameters
Model
FLT-300B
Cutting Speed
30m/min
Cutting Width
100-300mm
Cutting Length
50-350mm
Positioning Accuracy
±0.2 mm
Total Power
5 kw
Power Supply
380V±10% 50Hz(three phases four lines)
Overall Dimension
4000*1100*1950 mm
Weight
2000kg
