Factory Price Horizontal Cartoning Machine For Sachet Blad/tea Bag Carton Packing Box Bottle Packing Machine

Factory Price Horizontal Cartoning Machine For Sachet Blad/tea Bag Carton Packing Box Bottle Packing Machine

Quantity:




Inquire Add to Basket

Type:
Packaging Line
Applicable Industries:
Food & Beverage Factory, Food & Beverage Shops, pharmaceutical factory
Showroom Location:
Egypt, Canada, United Kingdom, United States, Peru, Pakistan, Mexico, Russia, Spain
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V,50Hz
Place of Origin:
Liaoning, China
Brand Name:
Xianglong
Dimension(L*W*H):
4600*1600*1550mm
Weight:
2000 KG
Warranty:
2 years
Key Selling Points:
Multifunctional
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor, PLC
Product name:
DXH-130 Fully Automatic Cartoning Machine
Box Quality requirement:
250-350g/㎡
Box Dimension range (L*W*H):
(70-80)*(85-130)*(14-50)mm
Compressed air:
≥0.6mpa;20m³/h
Keywords:
Box Packing Machine
After Warranty Service:
Online support
Certification:
GMP, ISO

Product Description

Product Description

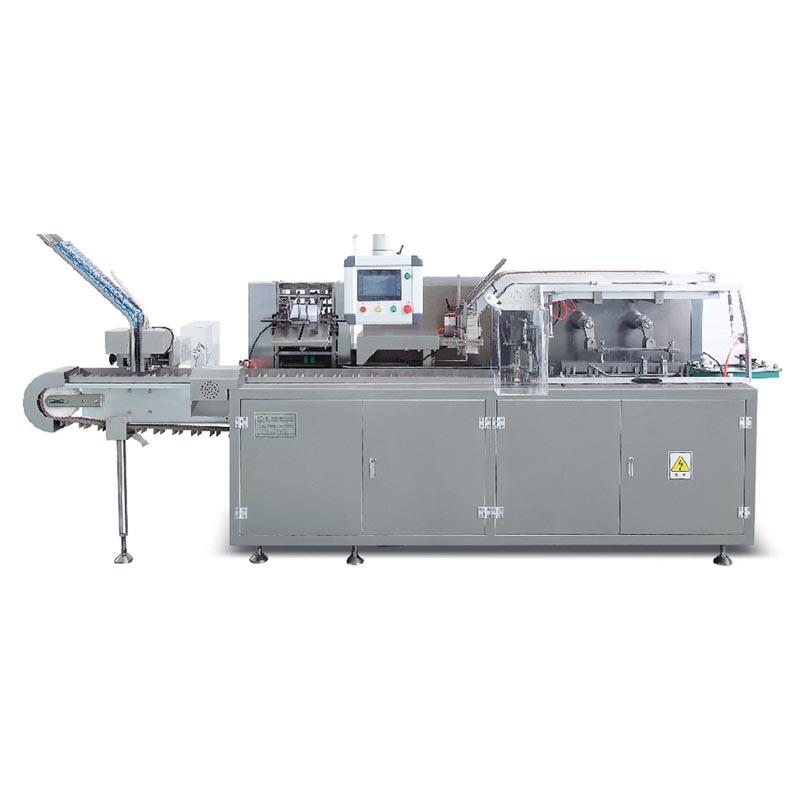

DXH-130 Fully Automatic Cartoning Machine

The machine suitable for automatic feeding and packing such as medicine blister, bottle, plaster, granule and some similar bag type products into the carton. Automatic feeding structure adjust conveniently, randomly set the bag number in touch screen. Online products feeding and detecting, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or ht lelt glue device. Automatic reject lacking of package products and leaflet, convey the finished products, This machine appearance all uses the high quality stainless steel cover, the work surface by the organic glass doors and windows closed, strictly according to the medicine industry “GMP”standard requst innovation design. The machine can be used single or joint with other equipment for a production line.

Feature：

1. Adpot lnternational famous brand of electrical component such as PLC. Frequency inverters,etc.
2. Adopt Human-machine operation System.

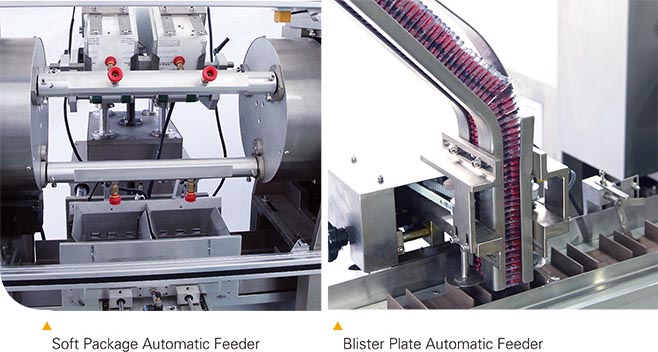

3. Servo feeder suitable for different specification blister and bag feeding.
4. Automatically stop when machine is overloaded.
5. Automatically reject lacking of package products and leaflet.
6. Automatically display trouble, alarm and counting.
7. Stable performance, easy operation.

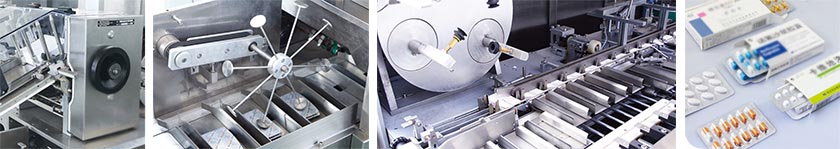

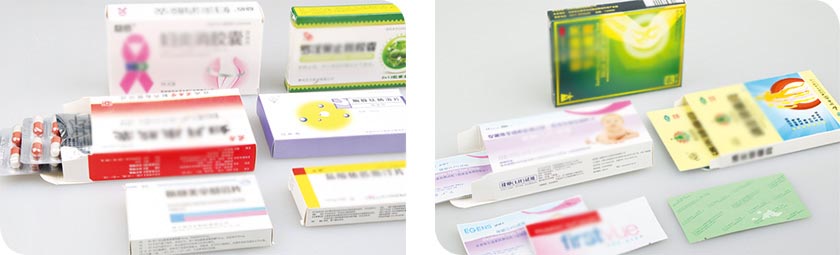

Details Images

Specification

Encasing speed			80-130 boxes/min
Box	Quality requirement	250-350g/㎡(according with carton dimension)
Box		Dimension range (LWH)	(70-80)(85-130)(14-50)mm
Leaflet	Quality requirement	60-70 g/㎡
		Unfolded leaflet specification	(80-250)*(90-170)mm
		Folded leaflet specification	1-4 folds
Compressed air	Working pressure	≥0.6mpa
Compressed air		Air consumption	20m³/h
Power supply			380V,50Hz
Motor power			3.5kw
Machine dimension (LWH)			460016001550mm
Machine weight			2000kg

Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).

Other Products

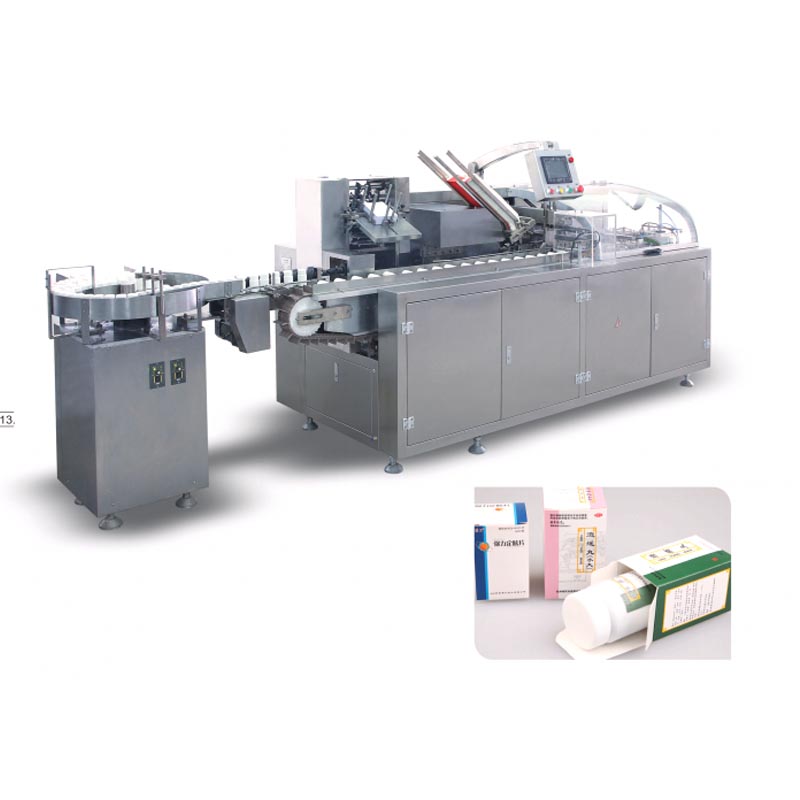

DXH-100P Automatic Cartoning Machine

Applications:

The machine suitable for automatic feeding bottle (round and square shape) into carton, online bottle unscramable and feeding,
leaflet folding (1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton,
printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet
and convey the finished products.

Features:

1.Adpot lnternational famous brand of electrical component such as PLC. Frequency inverters,etc.
2.Adopt Human-machine operation System.
3.Automatically stop when machine is overloaded.
4.Automatically reject lacking of package products and leaflet.
5.Automatically display trouble, alarm and counting.
6.Stable performance, easy operation.

Main Techincal Parameters:

Encasing speed			30-100 boxes/min
Box	Quality requirement	250-350g/㎡(according to its dimensions to confirm)
Box		Dimension range (LWH)	(65-180)(35-85)(15-50)mm
Leaflet	Quality requirement	60-70 g/㎡
		Unfolded leaflet specification	(80-250)*(90-170)mm
		Folded leaflet specification	1-4 folds
Compressed air	Working pressure	≥0.6mpa
Compressed air		Air consumption	20m³/h
Power supply			220V,50Hz
Motor power			0.75kw
Machine dimension (LWH)			397011001550mm
Machine weight			1600kg

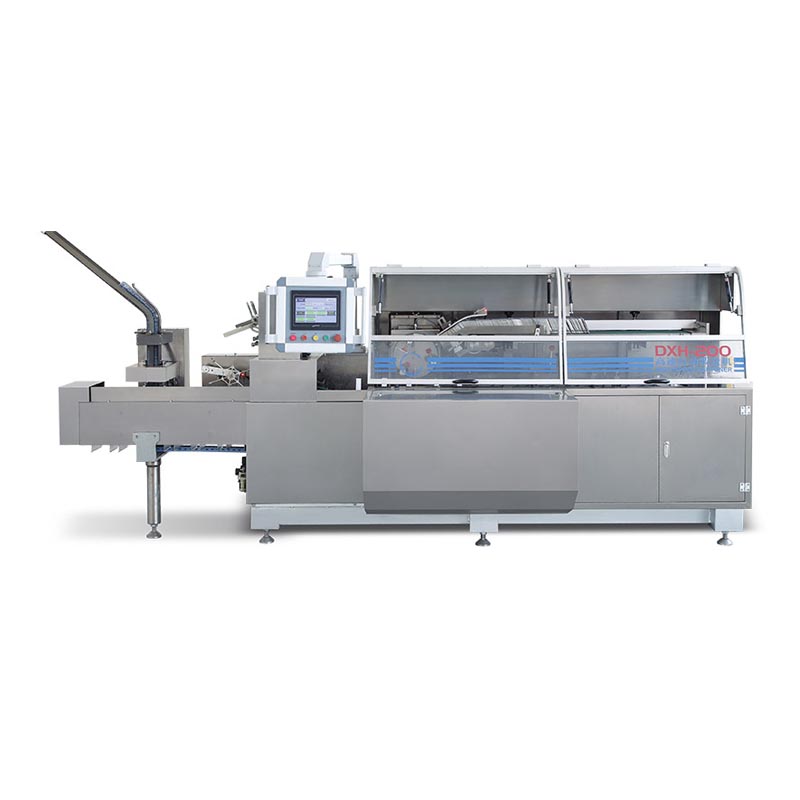

DXH-200 High-speed automatic cartoning machine

Applications:

DXH-200 High-speed Automatic Cartoning Machine belong to the continuity. High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and someother similar products into the carton, which can automatic finish the leaflet
folding, carton opening, feeding, printing lot number, sealing, ect.

Features:

1.Adpot lnternational famous brand of electrical component such as PLC. Frequency inverters,etc.
2.Adopt Human-machine operation System.
3.Servo feeding suitable for different specification Alu-pvc blister.
4.Automatically stop when machine is overloaded.
5.Automatically reject lacking of package products and leaflet.
6.Automatically display trouble, alarm and counting.
7.Stable performance, easy operation.

Main Techincal Parameters:

Encasing speed			80-200 boxes/min
Box	Quality requirement	250-350g/㎡(according to its dimensions to confirm)
Box		Dimension range (LWH)	(70-200)(50-120)(14-70)mm
Leaflet	Quality requirement	60-70 g/㎡
		Unfolded leaflet specification	(80-260)*(90-190)mm
		Folded leaflet specification	1-4 folds
Compressed air	Working pressure	≥0.6mpa
Compressed air		Air consumption	20m³/h
Power supply			380V,50Hz
Motor power			2.2kw
Total power			5kw
Machine dimension (LWH)			407016001600mm
Machine weight			3100kg

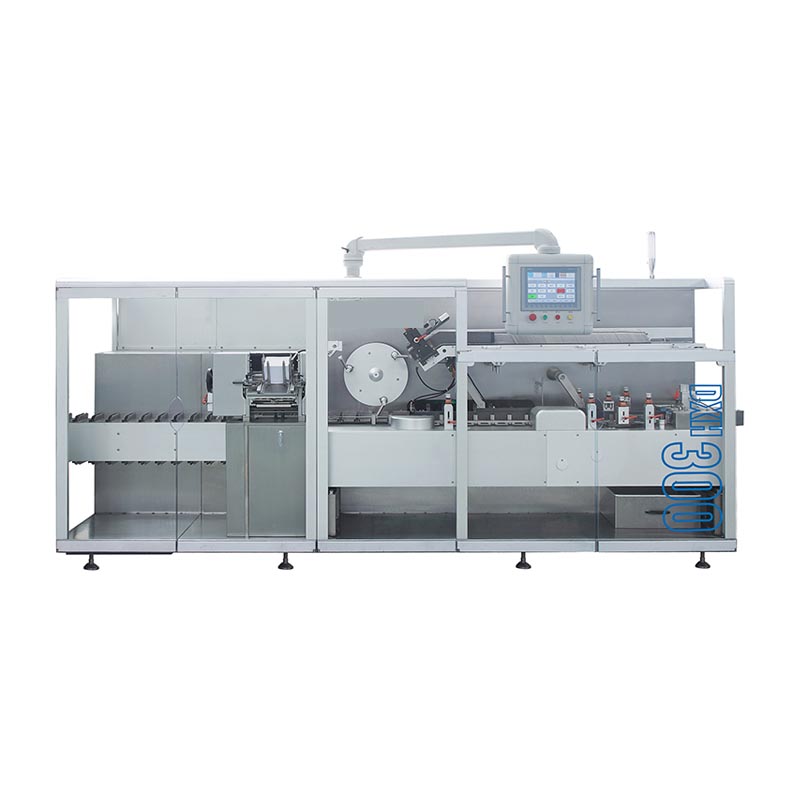

DXH-300 High-speed automatic cartoning machine

Applications:

DXH-300 High-speed Automatic Cartoning Machine belong to continuity, High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and someother similar products into the carton, which can automatic finish the leaflet
folding, carton opening, feeding, printing lot number, sealing, ect.

The machine adopt PLC control, and the photoelectricity detection each parts, can automatic show the reason when the machine
stoped by abnormity, easy for eliminate the failure. The machine can be used single or joint with pillow-type packing machine or
other equipment for a production line.

Features:

Main Techincal Parameters:

Encasing speed			80-300 boxes/min
Box	Quality requirement	250-350g/㎡(according to its dimensions to confirm)
Box		Dimension range (LWH)	(70-200)(50-120)(14-70)mm
Leaflet	Quality requirement	60-70 g/㎡
		Unfolded leaflet specification	(80-260)*(90-190)mm
		Folded leaflet specification	1-4 folds
Compressed air	Working pressure	≥0.6mpa
Compressed air		Air consumption	20m³/h
Power supply			380V,50Hz
Motor power			3.5kw
Total power			5.5kw
Machine dimension (LWH)			460015001750mm
Machine weight			3200kg
