Commercial Stainless Steel Automatic Trough Type Mixing Machine For Dry Powder Flour

Commercial Stainless Steel Automatic Trough Type Mixing Machine For Dry Powder Flour

Quantity:




Inquire Add to Basket

Mixer Type:
Paddle
Barrel Volume (L):
10
Material Processed:
Plastics, Chemicals, Food, Medicine
Max. Loading Volume (L):
6 L
Range of Spindle Speed(r.p.m):
1 - 24 r.p.m
Max. Loading Capacity:
6L
Weight (KG):
40 KG
Material:
SUS304, SUS304L, SUS316, SUS316L
Condition:
New
Product Type:
Flour, medicine, food mixer
Application:
Powder, Medicine Processing, Chemicals Processing, Food Proces
Additional Capabilities:
Mixing
Place of Origin:
Liaoning, China
Brand Name:
Xianglong
Voltage:
220V/380V
Dimension(L*W*H):
600*280*450 mm
Power (kW):
0.5 kW
Warranty:
2 years
Key Selling Points:
Easy to Operate
Applicable Industries:
Food & Beverage Factory, Food & Beverage Shops, Chemical and pharmaceutical
Showroom Location:
United Kingdom, United States, Peru, Pakistan, Spain
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor, Gear
Product name:
CH Type series groove mixer
Function:
Mixer Blender
Machine Type:
Dispersion Blender Mixer Machine
Mixing cycle:
5-20min

Product Description

Product Description

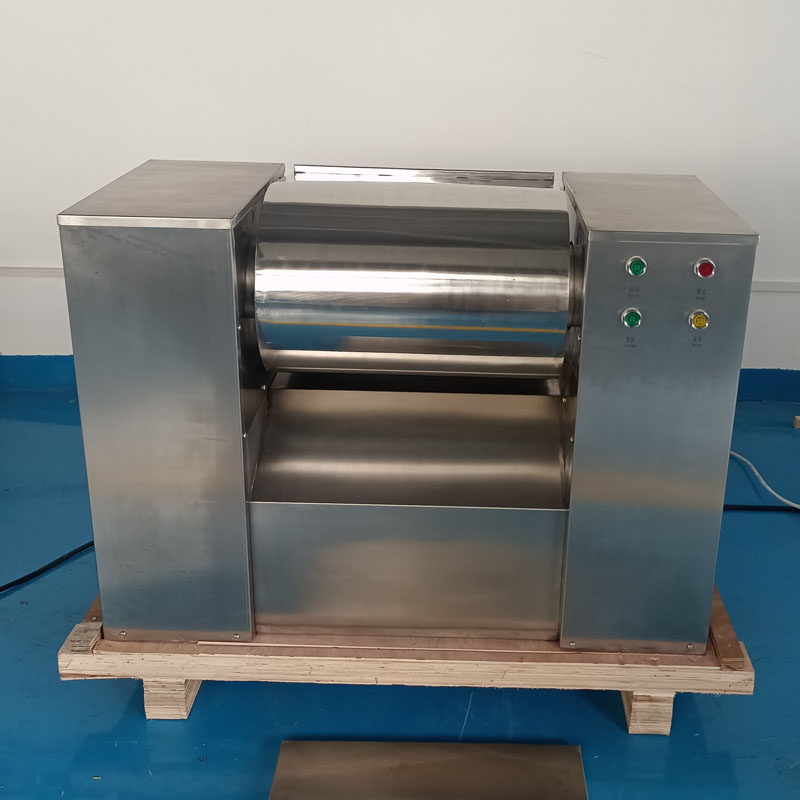

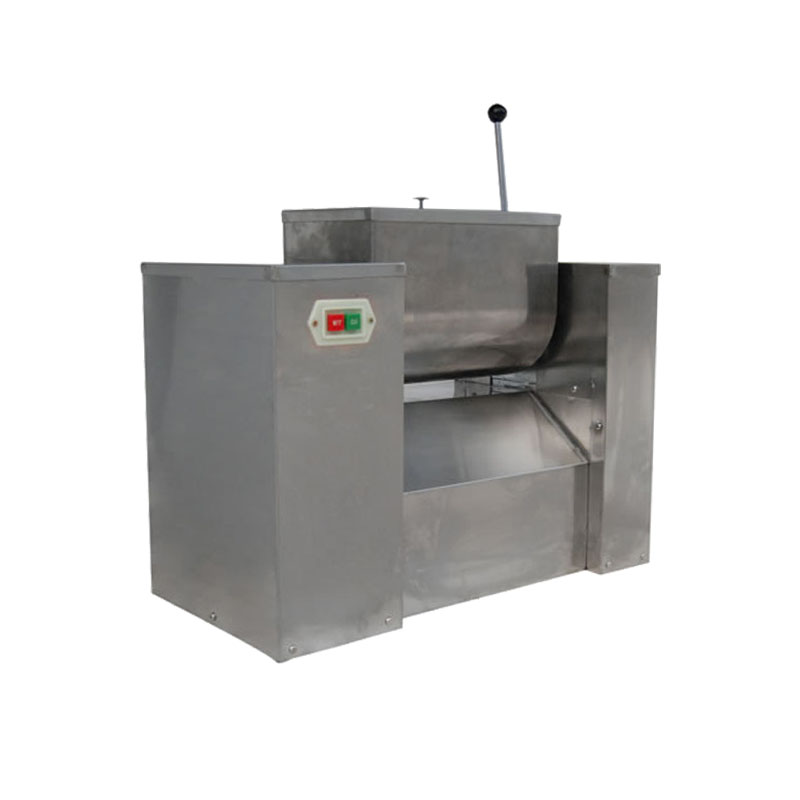

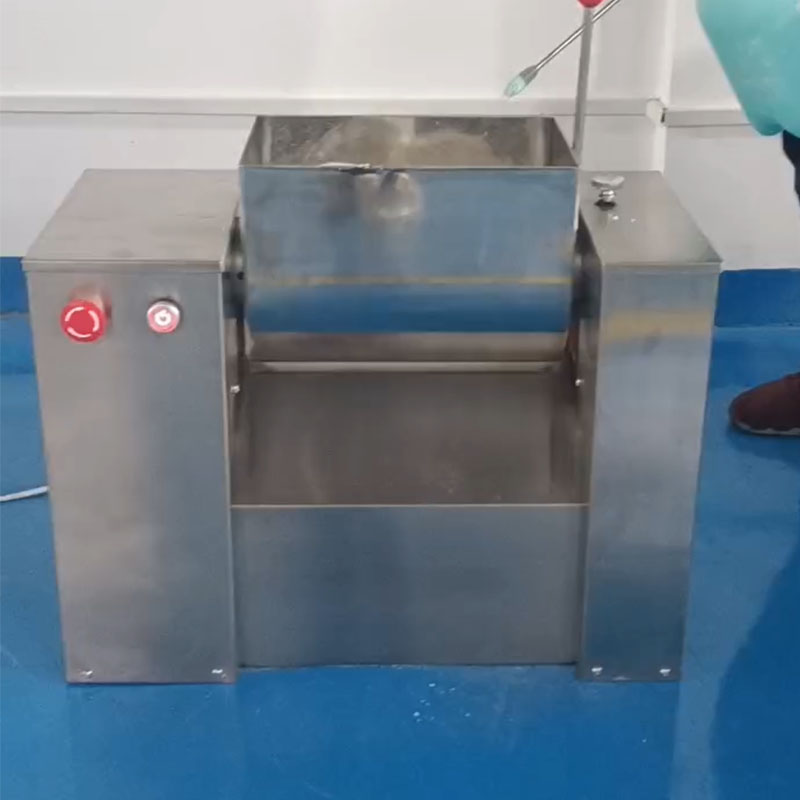

CH Type series groove mixer

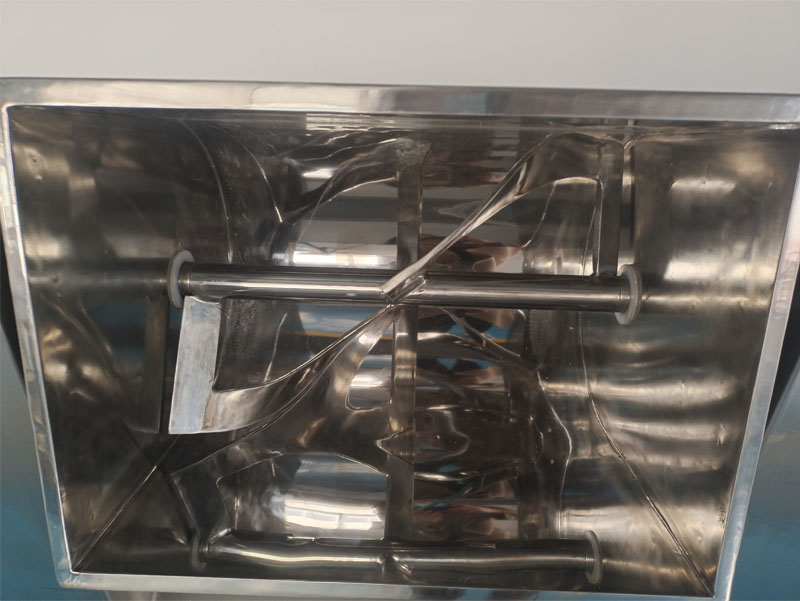

This machine is used to mix the different powder material. Making used of blades to rotate in material trough, it can mix the different materials evenly and uniformly. The reverse operation of material trough and blades makes the materials mixing more evenly and uniformly. This machine is also suitable for mixing different mainly complementing the material such industrial departments as chemical industry, food, etc. It is most suitable for mixing semi-solidly, solution or gluing and spending big material.

Features：

* This machine is suitable for mixing dry material particles in pharmaceutical and other industries.
* The mixing tube has unique structure, high mixing efficiency, no dead Angle and even mixing.

Details Images

Specification

Model	Trough capacity (kg)	Spindle speed (r/min)	Mixing cycle (min)	Main motor (kw)	Net weight (kg)	Overall size(mm)
CH10	10	24	5-20	0.5	40	600280450
CH50	50	24	5-20	1.1	200	980420800
CH100	100	24	5-20	2.2	250	1100440900
CH150	150	24	5-20	3	450	12086001100
CH200	200	24	5-20	4	520	14006001200
CH300	300	24	5-20	5.5	520	18507001200
CH500	500	24	5-20	4	750	22807501250
CH1000	1000	24	5-20	7.5	1200	228011001500
